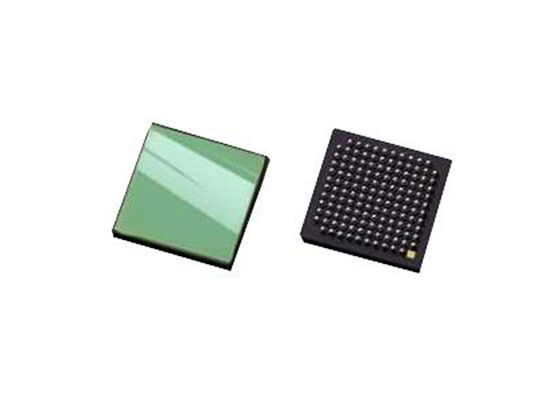

MLX75027RTC-ABA-210-TR Automotive Grade VGA TOF Sensor IC with 640x480 Resolution and 120 FPS

The MLX75027 is a fully integrated optical Time-of-Flight image sensor specifically designed for automotive applications. This advanced sensor is ideal for gesture recognition, driver monitoring, skeleton tracking, people or obstacle detection, and traffic monitoring. Featuring a VGA (640x480) pixel array based on DepthSense® pixel technology, it delivers exceptional performance in measuring object distance and reflectivity under extreme background light conditions.

• 1/2" optical Time-of-Flight image sensor with VGA (640 x 480) pixel array
• 10 x 10 µm DepthSense® pixels with integrated microlenses
• Backside illumination (BSI technology) for enhanced performance
• External quantum efficiency: 51% (850nm), 28% (940nm)
• High distance accuracy with programmable modulating frequencies up to 100 MHz
• AC Demodulation contrast: 85% (40 MHz), 78% (100 MHz)
• Full resolution distance framerate of max. 120 FPS
• Continuous or triggered operation modes
• Configurable over I2C (up to 400kHz)
• CSI-2 serial data output with MIPI D-PHY interface
• Built-in temperature sensor and region of interest (ROI) selection
• Integrated support for binning (2x2, 4x4, 8x8)
• 14 x 14 x 2.2 mm ceramic BGA package with 141 pins
• Ambient operating temperature range: -40°C to 105°C
• MSL level 3 rated and AEC-Q100 qualified (grade 2)
