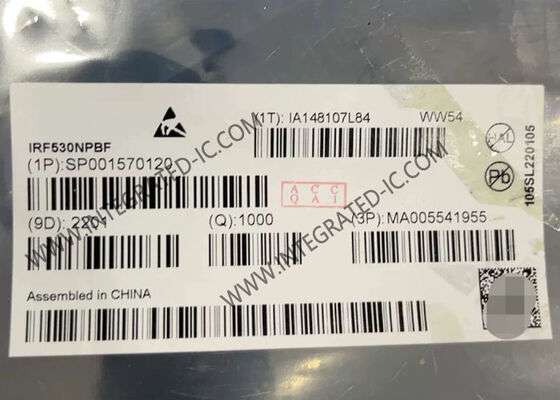

IRF530NPBF 100V 17A Fast Switching N-Channel MOSFET Transistor HEXFET® Power MOSFET Integrated Circuit Chip

IRF530NPBF 100V 17A Fast Switching N-Channel MOSFET Transistor HEXFET® Power MOSFET Integrated Circuit Chip
IRF530NPBF 100V 17A Fast Switching N-Channel MOSFET Transistor HEXFET® Power MOSFET Integrated Circuit Chip

Large Image :  IRF530NPBF 100V 17A Fast Switching N-Channel MOSFET Transistor HEXFET® Power MOSFET Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IRF530NPBF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-220-3
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IRF530NPBF 100V 17A Fast Switching N-Channel MOSFET Transistor HEXFET® Power MOSFET Integrated Circuit Chip

Description
Part Number: IRF530NPBF Series: HEXFET®
Drain To Source Voltage (Vdss): 100 V Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
Gate Charge (Qg) (Max) @ Vgs: 37 NC @ 10 V Power Dissipation (Max): 70W (Tc)
Highlight:

100V MOSFET Transistor

,

17A Continuous Drain Current HEXFET® Power MOSFET

,

Fast Switching Integrated Circuit Chip

IRF530 Integrated Circuit Chip 100V Single N-Channel MOSFET Transistor TO-220-3
Product Description Of IRF530

IRF530 is an N-channel power MOSFET belonging to the well-known HEXFET® power MOSFET series. This device is housed in a TO-220AB package and is renowned for its low on-resistance, fast switching and high reliability.

Specification Of IRF530
Product Category: MOSFETs
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 100 V
Id - Continuous Drain Current: 17 A
Rds On - Drain-Source Resistance: 90 mOhms
Vgs - Gate-Source Voltage: -20 V, 20 V
Vgs th - Gate-Source Threshold Voltage: 4 V
Qg - Gate Charge: 24.7 nC
Minimum Operating Temperature: -55℃
Maximum Operating Temperature: +175℃
Pd - Power Dissipation: 79 W
Features Of IRF530
  • Advanced Process Technology
  • Ultra Low On-Resistance
  • Dynamic dv/dt Rating
  • 175°C Operating Temperature
  • Fast Switching
  • Fully Avalanche Rated
  • Planar cell structure for wide SOA
  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Silicon optimized for applications
  • Industry standard through-hole power
  • High-current rating
