ADM3101EACPZ Integrated Circuit Chip ±15 kV ESD Protected 3.3V Single-Channel RS-232 Line Driver/Receiver with 460Kbps Data Rate

ADM3101EACPZ Integrated Circuit Chip ±15 kV ESD Protected 3.3V Single-Channel RS-232 Line Driver/Receiver with 460Kbps Data Rate
ADM3101EACPZ Integrated Circuit Chip ±15 kV ESD Protected 3.3V Single-Channel RS-232 Line Driver/Receiver with 460Kbps Data Rate

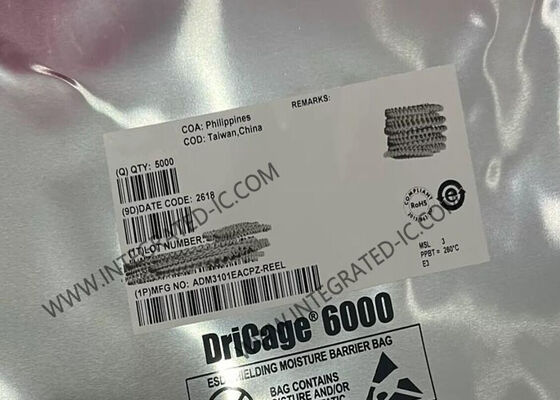

Large Image :  ADM3101EACPZ Integrated Circuit Chip ±15 kV ESD Protected 3.3V Single-Channel RS-232 Line Driver/Receiver with 460Kbps Data Rate

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADM3101EACPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFCSP-12
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ADM3101EACPZ Integrated Circuit Chip ±15 kV ESD Protected 3.3V Single-Channel RS-232 Line Driver/Receiver with 460Kbps Data Rate

Description
Part Number: ADM3101EACPZ Protocol: RS232
Number Of Drivers/Receivers: 1/1 Receiver Hysteresis: 400 MV
Data Rate: 460Kbps Voltage - Supply: 3V ~ 5.5V
Highlight:

±15 kV ESD Protected Integrated Circuit Chip

,

3.3V Single-Channel RS-232 Line Driver/Receiver

,

460Kbps Data Rate ADM3101EACPZ

ADM3101EACPZ Integrated Circuit Chip ±15 kV ESD Protected 3.3V Single-Channel RS-232 Line Driver/Receiver
Product Overview Of ADM3101

The ADM3101 is a high-speed, single-channel RS-232/ITU-T V.28 transceiver interface device that operates from a single 3.3V power supply. Low power consumption makes it ideal for battery-powered portable instruments.

The ADM3101 conforms to the EIA/TIA-232E and ITU-T V.28 specifications and operates at data rates up to 460 kbps.

Specifications Of ADM3101
Data Rate 460 kb/s
Number of Drivers 1 Driver
Number of Receivers 1 Receiver
Duplex Full Duplex
Supply Voltage Range 3 V to 5.5 V
Operating Supply Current 5 mA
Operating Temperature Range -40°C to +85°C
ESD Protection 15 kV
Unit Weight 43.800 mg
Key Features Of ADM3101
  • 460 kbps data rate
  • 1 Tx and 1 Rx
  • Meets EIA/TIA-232E specifications
  • 0.1 μF charge pump capacitors
  • Contact discharge: ±8 kV
  • Air gap discharge: ±15 kV
Applications Of ADM3101
  • General-purpose RS-232 data links
  • Industrial/telecommunications diagnostics ports
Product Identification

ADM3101EACPZ, ADM3101EACP, ADM3101EAC, ADM3101EA, ADM3101E, ADM3101
