MAX3140CEI Integrated Circuit Chip with SPI/MICROWIRE-Compatible UART and True Fail Safe RS-485/RS-422 Transceiver in 28-Pin QSOP Package

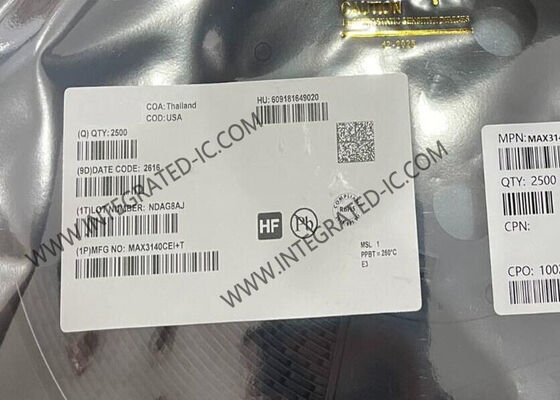

Large Image : MAX3140CEI Integrated Circuit Chip with SPI/MICROWIRE-Compatible UART and True Fail Safe RS-485/RS-422 Transceiver in 28-Pin QSOP Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MAX3140CEI

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QSOP-28
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

MAX3140CEI Integrated Circuit Chip with SPI/MICROWIRE-Compatible UART and True Fail Safe RS-485/RS-422 Transceiver in 28-Pin QSOP Package

Description

Part Number:	MAX3140CEI	Voltage - Supply:	4.75V ~ 5.25V
Current - Supply:	640µA	Operating Temperature:	0°C ~ 70°C
Interface:	SPI, UART	Function:	Controller
Highlight:	SPI/MICROWIRE-Compatible Integrated Circuit Chip , True Fail Safe UART , 28-Pin QSOP Package RS-485/RS-422 Transceiver

MAX3140CEI Integrated Circuit Chip SPI/MICROWIRE-Compatible UART With Integrated True Fail Safe RS-485/RS-422 Transceivers

The MAX3140 is a complete universal asynchronous receiver-transmitter (UART) and a true fail-safe RS-485/RS-422 transceiver combined in a single 28-pin QSOP package for space-, cost-, and power-constrained applications. The MAX3140 saves additional board space as well as microcontroller (µC) I/O pins by featuring an SPI™/QSPI™/MICROWIRE™-compatible serial interface. It is pin-programmable for configuration in all RS-485/RS-422 networks.

Specifications Of MAX3140

Data Rate	115 kb/s, 500 kb/s, 10Mb/s
Memory Size	8 B
Supply Voltage - Max	5.25 V
Supply Voltage - Min	4.75 V
Operating Supply Current	700 uA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Operating Supply Voltage	5 V
Unit Weight	120 mg

Key Features Of MAX3140

Integrated UART and RS-485/RS-422 Transceiver in a Single 28-Pin QSOP
SPI/MICROWIRE-Compatible Interface Saves µC I/O Pins
True Fail-Safe Receiver Output Eliminates Complex Network Termination
Pin-Programmable RS-485/RS-422 Features
Half/Full-Duplex Operation
Slew-Rate Limiting for Reduced EMI
115kbps/500kbps/10Mbps Data Rates
Receiver/Transmitter Phase for Twisted-Pair Polarity Reversal
Full-Featured UART
Programmable Up to 230k baud with a 3.6864MHz Crystal
8-Word Receive FIFO Minimizes Processor Overhead
9-Bit Address-Recognition Interrupt
Allows Up to 256 Transceivers on the Bus
Low 20µA Hardware Shutdown Mode
Hardware/Software-Compatible with MAX3100 and MAX3089

Applications Of MAX3140

Embedded Systems
HVAC and Building Control
Industrial Control Local Area Networks
Intelligent Instruments
Point-of-Sale (POS) Devices
Transceivers for EMI-Sensitive Applications
