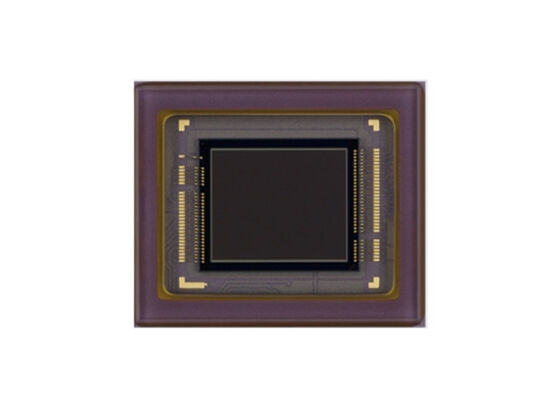

IMX462LQR1 Sensor IC Diagonal 6.46 mm CMOS Image Sensor with 2.13 M Pixels and 120 frame/s Readout

IMX462LQR1 Sensor IC Diagonal 6.46 mm CMOS Image Sensor with 2.13 M Pixels and 120 frame/s Readout
IMX462LQR1 Sensor IC Diagonal 6.46 mm CMOS Image Sensor with 2.13 M Pixels and 120 frame/s Readout

Large Image :  IMX462LQR1 Sensor IC Diagonal 6.46 mm CMOS Image Sensor with 2.13 M Pixels and 120 frame/s Readout

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX462LQR1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-110
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX462LQR1 Sensor IC Diagonal 6.46 mm CMOS Image Sensor with 2.13 M Pixels and 120 frame/s Readout

Description
Part Number: IMX462LQR1 Input Frequency:: 74.25 MHz / 37.125 MHz
Readout Rate: 120 Frame / S Package: LGA-110
Highlight:

Diagonal 6.46 mm Sensor IC

,

120 frame/s CMOS Image Sensor

,

2.13 M effective pixels Solid-State Image Sensor

IMX462LQR1 Sensor IC Diagonal 6.46 mm CMOS Active Pixel Type Solid-State Image Sensor

IMX462 is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

Key Features Of IMX462
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Input frequency: 74.25 MHz / 37.125 MHz
  • Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07 M pixels
  • Readout modes: All-pixel scan mode, 720p-HD readout mode, Window cropping mode, Vertical/Horizontal direction-normal/inverted readout mode
  • Maximum frame rate in Full HD 1080p mode: 120 frame/s
  • High dynamic range (HDR) function: Multiple exposure HDR, Digital overlap HDR
  • Variable-speed shutter function (resolution 1H units)
  • 10-bit / 12-bit A/D converter
  • CDS / PGA function with 0 dB to 29.4 dB analog gain and 29.7 dB to 71.4 dB digital gain
  • Supports I/O switching
  • CMOS logic parallel SDR output
  • Low voltage LVDS (150 m Vp-p) serial (2 ch / 4 ch / 8 ch switching) DDR output
  • CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
  • Recommended exit pupil distance: -30 mm to -∞
  • Anti-reflective coating glass on both sides (IMX462LQR1)
Applications Of IMX462
  • Surveillance Cameras
  • FA Cameras
  • Industrial Cameras
