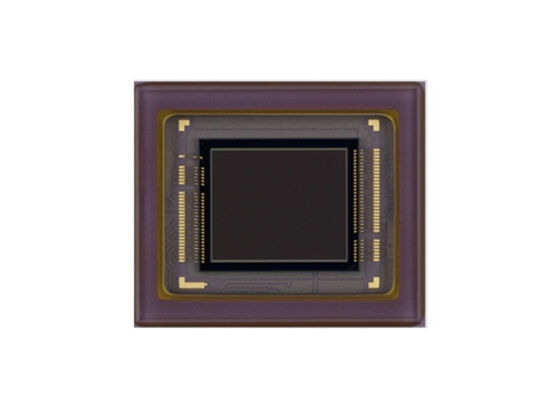

IMX327LQR1 Sensor IC Diagonal 6.46 mm CMOS Solid-state Image Sensor with 60 frame/s and 720p-HD Readout Mode

IMX327 is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. These chips operate with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and feature low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. These chips feature an electronic shutter with variable charge-integration time.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Input frequency: 74.25 MHz / 37.125 MHz
• Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07 M pixel
• Readout modes: All-pixel scan mode, 720p-HD readout mode, Window cropping mode, Vertical/Horizontal direction-normal/inverted readout mode
• Maximum frame rate in Full HD 1080p mode: 60 frame/s
• High dynamic range (HDR) function: Multiple exposure HDR, Digital overlap HDR
• Variable-speed shutter function (resolution 1H units)
• 10-bit / 12-bit A/D converter
• CDS / PGA function: 0 dB to 29.4 dB Analog Gain, 29.7 dB to 71.4 dB Analog + Digital Gain
• Supports I/O switching
• Low voltage LVDS (150 m Vp-p) serial (2 ch / 4 ch switching) DDR output
• CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
• Recommended exit pupil distance: -30 mm to -∞
• Anti-reflective coating glass on both sides (IMX327LQR1)

• Surveillance Cameras
• FA Cameras
• Industrial Cameras
