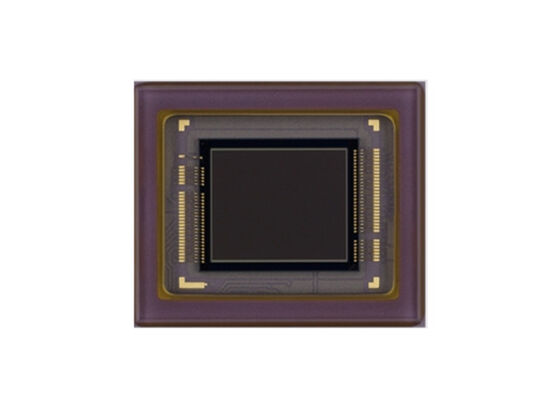

IMX664-AAMR1 Sensor IC CMOS Solid-State Image Sensor with 120 frame/s for Monochrome Cameras Diagonal 9.02mm

The IMX664 is a diagonal 9.02 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 4.16 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and features low power consumption. It delivers high sensitivity, low dark current, and no smear, along with an electronic shutter with variable charge-integration time.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Input frequency: 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz
• Number of recommended recording pixels: 2688 (H) × 1520 (V) approx. 4.08 M pixel
• Readout modes: All-pixel scan mode, Window cropping mode, Horizontal/Vertical direction - Normal/Inverted readout mode
• Maximum frame rate in All-pixel scan mode: 12 bit: 90 frame/s, 10 bit: 120 frame/s
• High dynamic range (HDR) function: Digital overlap HDR, Clear HDR
• Synchronizing sensors function
• Variable-speed shutter function (resolution 2H unit)
• CDS/PGA function: 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB), 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
• Supports I/O: CSI-2 serial data output (2 Lane / 4 Lane), RAW10 / RAW12 output
• AR coating on cover glass (Both sides)

Security Cameras
