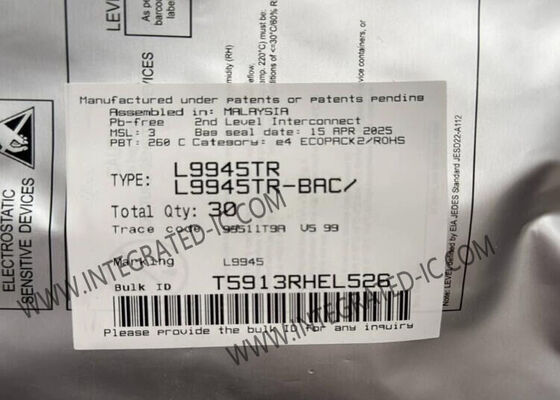

L9945TR Integrated Circuit Chip 8-Channel Configurable MOSFET Pre-Driver for Automotive 12V and 24V Systems

L9945TR Integrated Circuit Chip 8-Channel Configurable MOSFET Pre-Driver for Automotive 12V and 24V Systems
L9945TR Integrated Circuit Chip 8-Channel Configurable MOSFET Pre-Driver for Automotive 12V and 24V Systems

Large Image :  L9945TR Integrated Circuit Chip 8-Channel Configurable MOSFET Pre-Driver for Automotive 12V and 24V Systems

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: L9945TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFP-64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

L9945TR Integrated Circuit Chip 8-Channel Configurable MOSFET Pre-Driver for Automotive 12V and 24V Systems

Description
Part Number: L9945TR Input Current: 50 MA
Maximum Output Voltage: 14 V Voltage - Supply: 3.8V ~ 5.5V, 4.5V ~ 36V
Operating Temperature: -40°C ~ 150°C Type: High/Low Side MOSFET Pre-Driver
Highlight:

8-Channel Configurable MOSFET Pre-Driver

,

Automotive 12V and 24V Compliance Integrated Circuit Chip

,

High/Low Side Driver L9945TR

L9945 Integrated Circuit Chip Automotive Fully Configurable 8-Channel High/Low Side MOSFET Pre-Driver
Product Overview Of L9945

L9945 is an 8-channel MOSFET pre-driver configurable for low-side, high-side, peak and hold and H-Bridge load control. It is designed to comply with the requirements of 12 V (passenger vehicle) and 24 V (commercial vehicle) battery systems.

Specifications Of L9945
Product Category Power Management Specialized - PMIC
Type Driver
Mounting Style SMD/SMT
Package / Case TQFP-64
Maximum Output Voltage 14 V
Minimum Operating Temperature -40℃
Maximum Operating Temperature +150℃
Input Current 50 mA
Input Voltage Range 4.5 V to 5.5 V
Operating Supply Voltage 4.5 V to 5.5 V
Output Voltage Range 10 V to 14 V
Key Features Of L9945
  • 12 V and 24 V battery systems compliance
  • 3.3 V and 5 V logic compatible I/O
  • 8-channel configurable MOSFET pre-driver
  • High-side (N-channel and P-channel MOS)
  • Low-side (N-channel MOS)
  • H-bridge (up to 2 H-bridge)
  • Peak & Hold (2 loads)
  • Operating battery supply voltage 3.8 V to 36 V
  • Operating VDD supply voltage 4.5 V to 5.5 V
  • Programmable gate charge/discharge currents for improving EMI behavior
  • Individual diagnosis for short circuit to battery, open load, and short circuit to ground
  • Highly flexible overcurrent sensing implementation
  • 64 programmable overcurrent thresholds independent for each channel
  • Ultra-fast output shutdown in case of overcurrent
  • Current limitation for H-Bridge configuration
  • 32-bit SPI protocol available for configuration and diagnostics
  • Safety features including Built In Self Test (BIST) and Hardware Self Check (HWSC)
  • 10-bit ADC for battery and die temperature measurements available by SPI
Applications Of L9945
  • Automotive 12 and 24 V (passenger and commercial vehicles) applications
  • Low-side, high-side, Peak and hold and H-Bridge load control
  • Designed for driving relays, motors, and all the resistive and inductive loads
Related Components
Part Number Package
TDA38725-0000 PG-IQFN-36
TDA38807 PG-TSNP-14
TDA38641-0000 PG-IQFN-36
TDA38640A-0000 PG-IQFN-36
TDA38740A-0000 PG-IQFN-36
TDA38725A-0000 PG-IQFN-36
TDA38540 PG-IQFN-36
ISO1H812G PG-DSO-36
CY8C4024AZI-S403 PG-TQFP-48
CY8C4024AZI-S413 PG-TQFP-48
Product Tags
L9945TR L9945T L9945
