REF200AU Integrated Circuit Chip with 100µA Current Source, ±0.25% Accuracy, and 2.5V ~ 40V Input Voltage

REF200AU Integrated Circuit Chip with 100µA Current Source, ±0.25% Accuracy, and 2.5V ~ 40V Input Voltage
REF200AU Integrated Circuit Chip with 100µA Current Source, ±0.25% Accuracy, and 2.5V ~ 40V Input Voltage

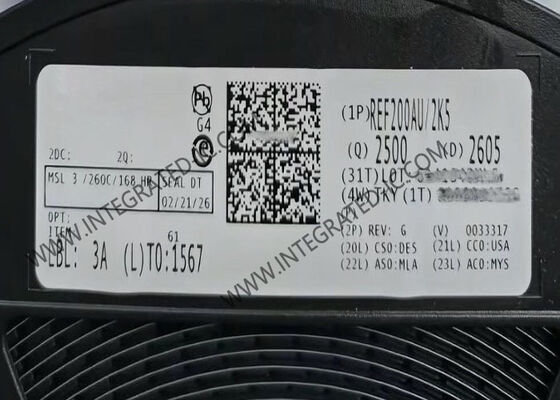

Large Image :  REF200AU Integrated Circuit Chip with 100µA Current Source, ±0.25% Accuracy, and 2.5V ~ 40V Input Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: REF200AU
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-SOIC
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

REF200AU Integrated Circuit Chip with 100µA Current Source, ±0.25% Accuracy, and 2.5V ~ 40V Input Voltage

Description
Part Number: REF200AU Accuracy: ±0.25%
Voltage - Input: 2.5V ~ 40V Current - Output: 100µA
Operating Temperature: -25°C ~ 85°C Function: Current Mirror, Current Sink/Source
Highlight:

100µA Current Source IC Chip

,

±0.25% Accuracy Integrated Circuit Chip

,

2.5V ~ 40V Input Voltage Monolithic Chip

REF200AU Integrated Circuit Chip 100µA Dual Current Source And Current Sink 8-SOIC
Product Overview Of REF200

The REF200 combines three circuit building-blocks on a single monolithic chip: two 100-μA current sources and a current mirror. The sections are dielectrically isolated, making them completely independent. Because the current sources are two-terminal devices, they can be used equally well as current sinks. The performance of each section is individually measured and laser-trimmed to achieve high accuracy at low cost.

Specifications Of REF200
Sensing Method High or Low Side
Supply Voltage - Max 40 V
Supply Voltage - Min 2.5 V
Operating Supply Current 100 μA
Accuracy 0.25 %
Minimum Operating Temperature -25 °C
Maximum Operating Temperature +85 °C
Input Voltage Range 2.5 V to 40 V
Unit Weight 76 mg
Key Features Of REF200
  • Completely Floating: No Power Supply or Ground Connections
  • High Accuracy: 100 μA ±0.5%
  • Low Temperature Coefficient: ±25 ppm/°C
  • Wide Voltage Compliance: 2.5 V to 40 V
  • Includes Current Mirror
Applications Of REF200
  • Sensor Excitation
  • Biasing Circuitry
  • Offsetting Current Loops
  • Low Voltage References
  • Charge-pump Circuitry
  • Hybrid Microcircuits
