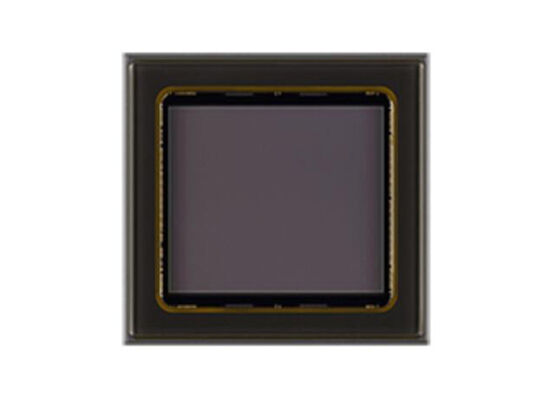

IMX433LQJ CMOS Image Sensor with Global Shutter and Pregius Technology for High-Speed 243 frame/s Color Cameras

IMX433 is a 1/1.7-inch, 510,000 square-pixel CMOS solid-state image sensor designed for colour cameras. Equipped with Pregius technology, this sensor enables high-speed, distortion-free imaging with high image quality.

IMX433 utilises a global shutter mode with variable charge integration time and is characterised by low power consumption, high sensitivity, low dark current and low PLS, making it suitable for factory automation cameras and intelligent transport system cameras.

• Technology: Pregius
• Resolution: 0.5 Megapixels
• Effective Pixels (H x V): 816 (H) x 624 (V)
• Image Size (Type): 1/1.7
• Aspect Ratio: 4:3
• Pixel Size (V=H): 9 μm
• Max Frame Rate: 243 frame/s
• Exposure Mode: Global Shutter
• Output Interface: SLVS-EC/SLVS
• Spectrum: Color
• Package: LGA-226

• 1/1.7-inch active-pixel CMOS sensor
• Built-in timing-adjustable circuitry, H-driver, V-driver and serial communication circuitry
• Global shutter mode
• Readout modes: All-pixel scan mode, ROI mode, Vertical/horizontal normal/flipped readout modes
• Readout speed: Maximum frame rate in all-pixel scan mode: 12-bit: 243.0 frames per second
• 12-bit A/D converter
• CDS/PGA functions: 0-24 dB analogue gain (0.1 dB steps) and 24.1-48 dB gain combination
• I/O interfaces: SLVS (2-channel conversion) output and SLVS-EC (single-channel conversion) output
• Recommended lens aperture: f/2.8 or wider (near end)

• FA Cameras
• ITS Cameras
