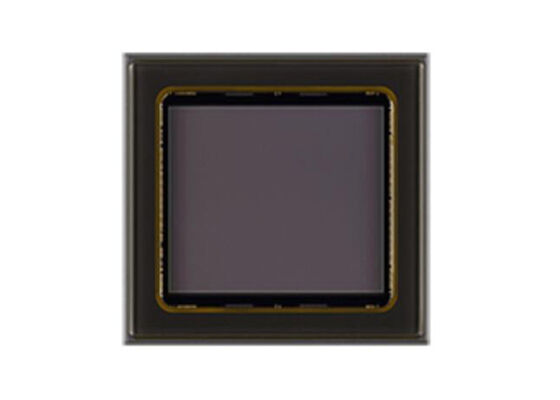

IMX297LLR Sensor IC 6.3mm Diagonal CMOS Solid-State Image Sensor with Global Shutter and 120 frame/s for Monochrome Cameras

IMX297 is a global shutter image sensor with a diagonal of 6.3 mm (1/2.9 inches) and 400,000 square pixels, designed for monochrome cameras. Equipped with Pregius technology, this sensor enables high-speed, distortion-free imaging with high image quality.

IMX297 utilises a global shutter mode with variable charge integration time and features low power consumption, high sensitivity, low dark current and low PLS, making it suitable for sensing and embedded vision applications.

• 1/2.9-inch active-pixel CMOS sensor
• Built-in timing-adjustable circuitry, H-driver, V-driver and serial communication circuits
• Global shutter mode
• Readout modes:
  • All-pixel scan mode
  • ROI mode
  • Vertical/horizontal - normal/flipped readout modes
• Readout speed: Maximum frame rate in all-pixel scan mode: 10-bit: 120.8 frames per second
• 10-bit A/D converter
• CDS/PGA functions: 0-24 dB analogue gain (0.1 dB steps) and 24.1-48 dB analogue gain + digital gain
• I/O Interface: CSI-2 serial data output (1 channel), RAW10 output
• Recommended Lens Aperture: f/2.8 or wider (near end)
