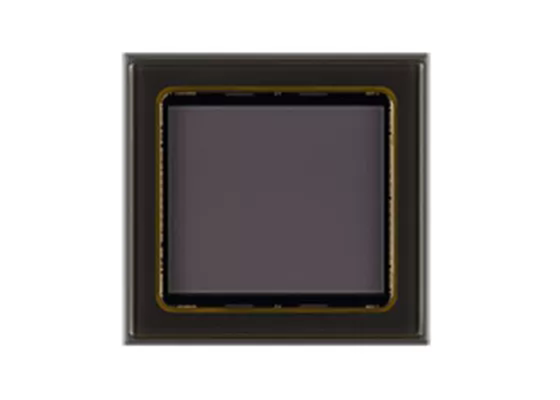

IMX535-AAQJ1-RG High Sensitivity CMOS Global Shutter Image Sensor with 12.41 M Effective Pixels and 184 frame/s

The IMX535 is a diagonal 14.0 mm (Type 1/1.1) CMOS active pixel type solid-state image sensor with a square pixel array and 12.41 M effective pixels. This chip features a global shutter with variable charge-integration time and operates with analog 3.3 V, 2.9 V, digital 1.1 V, and interface 1.8 V quadruple power supply. It delivers high sensitivity and low dark current characteristics.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Global shutter function
• Input frequency: 37.125 MHz / 74.25 MHz / 54 MHz
• Number of recommended recording pixels: 4096 (H) × 3000 (V) approx. 12.28 M pixels
• Readout modes: All-pixel scan mode, Vertical/Horizontal 1/2 Subsampling mode, ROI mode, Vertical/Horizontal Normal/Inverted readout mode
• Maximum frame rate in All-pixel scan mode: 8 bit 184.8 frame/s, 10 bit 184.1 frame/s, 12 bit 121.0 frame/s
• Pulse Output Function with monitor output for Exposure period
• Programmable pulse output
• 8-bit / 10-bit / 12-bit A/D converter
• CDS/PGA function with 0 dB to 24 dB Analog Gain (0.1 dB step) and 24.1 dB to 48 dB gain combination
• I/O interface: SLVS (4 ch / 8 ch switching) output and SLVS-EC (1 Lane / 2 Lane / 4 Lane / 8 Lane) output
• Recommended lens F number: 2.8 or more (Close side)

• FA Cameras
• ITS Cameras
