MP2497GN Integrated Circuit Chip 3A 50V Step-Down Converter with Programmable OVP Threshold

MP2497GN Integrated Circuit Chip 3A 50V Step-Down Converter with Programmable OVP Threshold
MP2497GN Integrated Circuit Chip 3A 50V Step-Down Converter with Programmable OVP Threshold

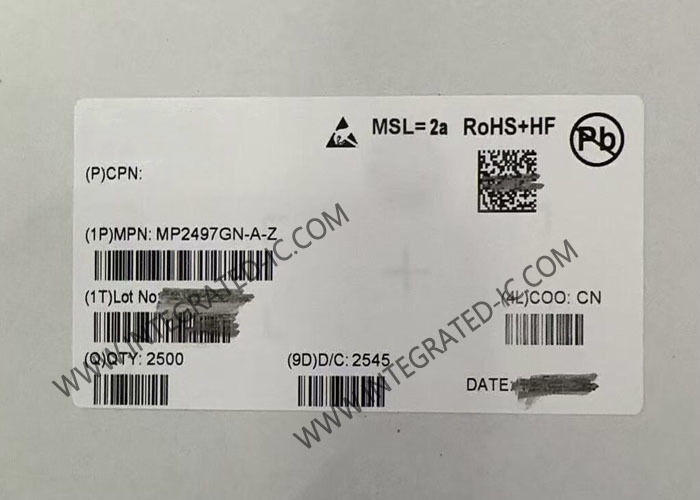

Large Image :  MP2497GN Integrated Circuit Chip 3A 50V Step-Down Converter with Programmable OVP Threshold

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP2497GN
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-EP-8
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MP2497GN Integrated Circuit Chip 3A 50V Step-Down Converter with Programmable OVP Threshold

Description
Part Number: MP2497GN Number Of Outputs: 1
Voltage - Input (Min): 4.5V Voltage - Input (Max): 50V
Voltage - Output (Min/Fixed): 0.8V Voltage - Output (Max): 25V
Highlight:

3A Output Current Integrated Circuit Chip

,

50V Input Voltage Step-Down Converter

,

Programmable OVP Threshold MP2497GN

MP2497GN Integrated Circuit Chip 3A 50V 100kHz Step-Down Converter With Programmable Output OVP Threshold
Product Overview Of MP2497

The MP2497 is a monolithic step-down switch mode converter with a programmable output current limit. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. An internal 2~4ms soft start prevents inrush current at turning on, and it is capable of providing output line drop compensation.

MP2497 achieves low EMI signature with well controlled switching edges. Fault condition protection includes hiccup current limit and short circuit protection, programmable output over voltage protection and thermal shutdown. The MP2497 requires a minimum number of readily available standard external components and is available in SOIC8 and SOIC8E packages.

Specifications Of MP2497
Output Voltage 800 mV to 25 V
Output Current 3 A
Number of Outputs 1 Output
Switching Frequency 100 kHz
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
Input Voltage 4.5 V to 50 V
Operating Supply Current 1.2 mA
Supply Voltage - Min 4.5 V
Key Features Of MP2497
  • Wide 4.5V to 50V Operating Input Range
  • Programmable Output Over Voltage Protection
  • Output Adjustable from 0.8V to 15V
  • 0.15Ω Internal Power MOSFET Switch
  • Internal 4ms Soft Start
  • Stable with Low ESR Output Ceramic Capacitors
  • Fixed 100kHz Frequency
  • Low EMI Signature
  • Thermal Shutdown
  • Output Line Drop Compensation
  • Hiccup Circuit Limit and Short Circuit Protection
  • Available in SOIC8 and SOIC8E Package
Applications Of MP2497
  • USB Power Supplies
  • Automotive Lighter Adapters
  • Power Supply for Linear Chargers
Product Identification
MP2497GN, MP2497G, MP2497
