MCP4631-503E/ST Integrated Circuit Chip 7-Bit Digital Potentiometer with 50k Ohms Resistance and I2C Interface

MCP4631-503E/ST Integrated Circuit Chip 7-Bit Digital Potentiometer with 50k Ohms Resistance and I2C Interface
MCP4631-503E/ST Integrated Circuit Chip 7-Bit Digital Potentiometer with 50k Ohms Resistance and I2C Interface

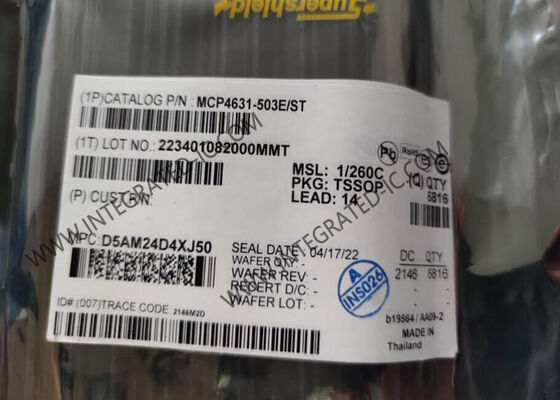

Large Image :  MCP4631-503E/ST Integrated Circuit Chip 7-Bit Digital Potentiometer with 50k Ohms Resistance and I2C Interface

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MCP4631-503E/ST
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSSOP-14
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

MCP4631-503E/ST Integrated Circuit Chip 7-Bit Digital Potentiometer with 50k Ohms Resistance and I2C Interface

Description
Part Number: MCP4631-503E/ST Configuration: Potentiometer
Number Of Taps: 129 Resistance (Ohms): 50k
Voltage - Supply: 1.8V ~ 5.5V Temperature Coefficient (Typ): 150ppm/°C
Highlight:

7-Bit Digital Potentiometer

,

50k Ohms Digital POT

,

I2C Interface Integrated Circuit Chip

MCP4631 Integrated Circuit Chip 7-Bit Dual Digital POT TSSOP-14 Digital Potentiometers
MCP4631 is dual channel, volatile, 7-bit (257 wiper steps) digital potentiometers with an I2C compatible interface. It is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ.
Specifications Of MCP4631
Product Category Digital Potentiometer ICs
Resistance 50 kOhms
Temperature Coefficient 150 PPM / C
Tolerance 20 %
Number of POTs Dual
Taps per POT 128 Tap
Wiper Memory Volatile
Digital Interface Serial (2-Wire, I2C)
Operating Supply Voltage 2.5 V, 3.3 V, 5 V
Operating Supply Current 2.5 uA
Minimum Operating Temperature -40℃
Maximum Operating Temperature +125℃
Termination Style SMD/SMT
Package / Case TSSOP-14
Features Of MCP4631
  • Dual Resistor Network Options
  • Potentiometer or Rheostat Configuration Options
  • Resistor Network Resolution: 7-bit: 128 Resistors (129 Steps)
  • RAB Resistances Options of: 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
  • Zero-Scale to Full-Scale Wiper Operation
  • Low Wiper Resistance: 75Ω (typical)
  • Low Tempco: Absolute (Rheostat): 50 ppm typical (0°C to 70°C), Ratiometric (Potentiometer): 15 ppm typical
  • I2C Serial Interface: 100 kHz, 400 kHz and 3.4 MHz Support
  • Serial Protocol Allows: High-Speed Read/Write to Wiper, Increment/Decrement of Wiper
  • Resistor Network Terminal Disconnect Feature via the Terminal Control (TCON) Register
  • Brown-Out Reset Protection (1.5V typical)
  • Serial Interface Inactive Current (2.5 uA typical)
  • High-Voltage Tolerant Digital Inputs: up to 12.5V
  • Wide Operating Voltage: 2.7V to 5.5V - Device Characteristics Specified, 1.8V to 5.5V - Device Operation
  • Wide Bandwidth (-3dB) Operation: 2 MHz (typical) for 5.0 kΩ Device
  • Extended Temperature Range (-40°C to +125°C)
