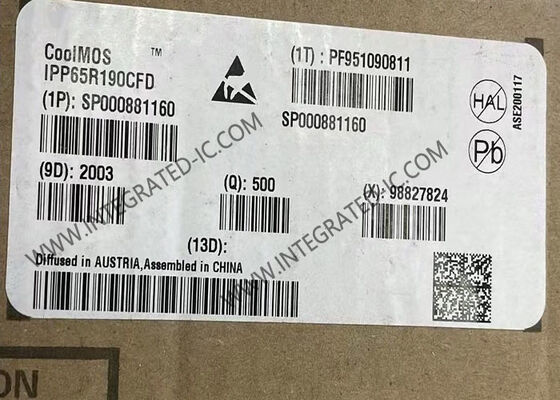

IPP65R190CFD 650V CoolMOS™ N-Channel Power MOSFET with 190mOhm Rds On and 14A Continuous Drain Current

IPP65R190CFD 650V CoolMOS™ N-Channel Power MOSFET with 190mOhm Rds On and 14A Continuous Drain Current
IPP65R190CFD 650V CoolMOS™ N-Channel Power MOSFET with 190mOhm Rds On and 14A Continuous Drain Current

Large Image :  IPP65R190CFD 650V CoolMOS™ N-Channel Power MOSFET with 190mOhm Rds On and 14A Continuous Drain Current

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IPP65R190CFD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-220-3
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

IPP65R190CFD 650V CoolMOS™ N-Channel Power MOSFET with 190mOhm Rds On and 14A Continuous Drain Current

Description
Part Number: IPP65R190CFD Drain To Source Voltage (Vdss): 650 V
Current - Continuous Drain (Id) @ 25°C: 14A (Tc) Rds On (Max) @ Id, Vgs: 190mOhm @ 6.4A, 10V
Vgs(th) (Max) @ Id: 4.5V @ 320µA Power Dissipation: 77W (Tc)
Highlight:

650V Power MOSFET

,

190mOhm Integrated Circuit Chip

,

14A CoolMOS™ N-Channel

IPP65R190CFD Integrated Circuit Chip 650V CoolMOS™ N-Channel Power MOSFET Transistors
Product Overview Of IPP65R190

IPP65R190 is a 650V CoolMOS™ CFD2 N-Channel Power MOSFET transistor from Infineon. This second-generation high-voltage MOSFET features an integrated fast body diode, offering improved energy efficiency and superior EMI behavior compared to competitor parts.

Specifications Of IPP65R190
Parameter Value
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 650 V
Id - Continuous Drain Current 12 A
Rds On - Drain-Source Resistance 190 mOhms
Vgs - Gate-Source Voltage 20 V
Vgs th - Gate-Source Threshold Voltage 4.5 V
Qg - Gate Charge 23 nC
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +150 °C
Pd - Power Dissipation 63 W
Key Features Of IPP65R190
  • 650V with integrated fast body diode
  • Low voltage overshoot in hard switching
  • Significant QG reduction
  • Tighter RDS(on)max to RDS(on)typ window
  • Easy to design-in
Performance Benefits Of IPP65R190
  • Low switching losses due to low Qrr
  • Self-limiting di/dt and dv/dt
  • Low Qoss
  • Reduced turn on and turn off delay times
  • Outstanding CoolMOS™ quality
Applications Of IPP65R190
  • Intermediate Bus Converter (IBC)
  • DIN rail power supply solutions
  • Uninterruptible power supplies (UPS)
