DAC8551IDGKR 16-Bit Ultralow Glitch Digital to Analog Converter VSSOP-8 Integrated Circuit Chip

DAC8551IDGKR 16-Bit Ultralow Glitch Digital to Analog Converter VSSOP-8 Integrated Circuit Chip
DAC8551IDGKR 16-Bit Ultralow Glitch Digital to Analog Converter VSSOP-8 Integrated Circuit Chip

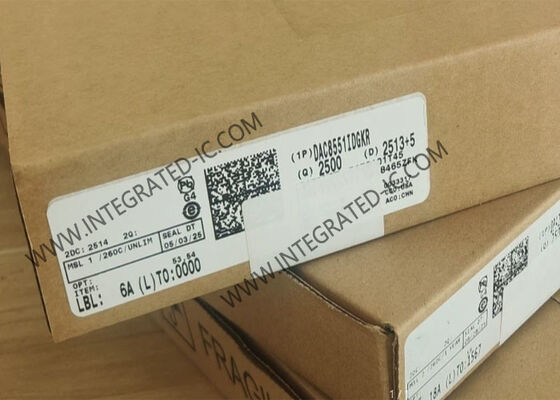

Large Image :  DAC8551IDGKR 16-Bit Ultralow Glitch Digital to Analog Converter VSSOP-8 Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: DAC8551IDGKR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSSOP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

DAC8551IDGKR 16-Bit Ultralow Glitch Digital to Analog Converter VSSOP-8 Integrated Circuit Chip

Description
Part Number: DAC8551IDGKR Series: MicroPOWER™
Number Of Bits: 16 Settling Time: 10µs
INL/DNL (LSB): ±3, ±0.25 Operating Temperature: -40°C ~ 105°C
Highlight:

16-Bit Digital to Analog Converter

,

Ultralow Glitch DAC

,

VSSOP-8 Integrated Circuit Chip

DAC8551 Integrated Circuit Chip 16-Bit Ultralow Glitch Digital To Analog Converter VSSOP-8
Product Description Of DAC8551

DAC8551 is a small, low-power, voltage output, 16-bit digital-to-analog converter (DAC). It is monotonic, provides good linearity, and minimizes undesired code-to-code transient voltages.

DAC8551 uses a versatile 3-wire serial interface that operates at clock rates to 30 MHz and is compatible with standard SPI™, QSPI™, Microwire™, and digital signal processor (DSP) interfaces.

Specifications Of DAC8551
Product Category: Digital to Analog Converters - DAC
Resolution: 16 bit
Sampling Rate: 200 kS/s
Number of Channels: 1 Channel
Settling Time: 10 us
Output Type: Voltage Buffered
Interface Type: 3-Wire, DSP, Microwire, QSPI, SPI
Analog Supply Voltage: 2.7 V to 5.5 V
Digital Supply Voltage: 2.7 V to 5.5 V
Minimum Operating Temperature: -40 ℃
Maximum Operating Temperature: +105 ℃
Mounting Style: SMD/SMT
Package / Case: VSSOP-8
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
DNL - Differential Nonlinearity: +/- 2 LSB
Gain Error: 0.2 % FSR
INL - Integral Nonlinearity: +/- 8 LSB
Number of Converters: 1 Converter
Power Consumption: 1 mW
Key Features Of DAC8551
  • Relative Accuracy: 8LSB
  • Glitch Energy: 0.1 nV-s
  • MicroPower Operation: 140 µA at 2.7 V
  • Power-On Reset to Zero
  • Power Supply: 2.7 V to 5.5 V
  • 16-Bit Monotonic
  • Settling Time: 10 µs to ±0.003% FSR
  • Low-Power Serial Interface with Schmitt-Triggered Inputs
  • On-Chip Output Buffer Amplifier with Rail-to-Rail Operation
  • Power-Down Capability
  • Binary Input
  • SYNC Interrupt Facility
Applications Of DAC8551
  • Process Control
  • Data Acquisition Systems
  • Closed-Loop Servo-Control
  • PC Peripherals
  • Portable Instrumentation
  • Programmable Attenuation
