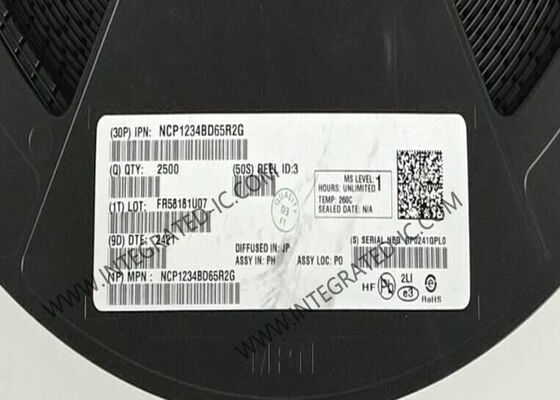

NCP1234BD65R2G Integrated Circuit Chip Fixed Frequency Current Mode Controller for 65kHz Switching Flyback Converters

NCP1234 is a new fixed-frequency current-mode controller featuring Dynamic Self-Supply (DSS). This device is pin-to-pin compatible with the previous NCP12xx families.

The DSS function greatly simplifies the design of the auxiliary supply and the VCC capacitor by activating the internal startup current source to supply the controller during transients.

Due to frequency foldback, the controller exhibits excellent efficiency in light load condition while still achieving very low standby power consumption. Internal frequency jittering, ramp compensation, and a versatile latch input make this controller an excellent candidate for converters where component cost is the key constraint.

It features a timer-based fault detection that ensures the detection of overload independently of an auxiliary winding, and an adjustable compensation to help keep the maximum power independent of the input voltage.

• Frequency Foldback then Skip Mode in light load and standby conditions
• High voltage current source with brown-out detection and dynamic self-supply
• Frequency Jittering
• 4.0 ms Soft-Start
• Adjustable Overpower Compensation
• Latched / Autorecovery Timer-Based Overload Protection

• Consumer Electronics Power Supplies
• Auxiliary/Housekeeping power supplies

A: Yes, all products are original, new original import is our purpose.

A: We are ISO 9001:2015 Certified Company and member of ERAI.

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
