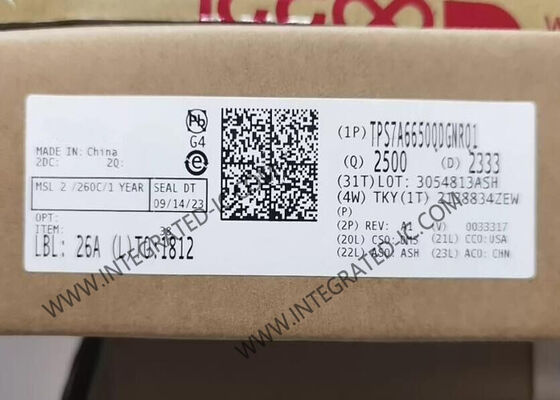

TPS7A6650QDGNRQ1 Automotive 150mA 40V Low-Dropout Voltage Regulator Integrated Circuit Chip with Power Good

TPS7A6650 is low-dropout linear regulators designed for up to 40-V Vin operations. With only 12-µA quiescent current at no load, they are quite suitable for standby microprocessor control-unit systems, especially in automotive applications.

• Qualified for Automotive Applications
• AEC-Q100 Test Guidance With the Following:
  • Device Temperature Grade 1
  • Device Temperature Grade 0 (TPS7A6650EDGNRQ1 Only)
  • Device HBM ESD Classification Level H2
  • Device CDM ESD Classification Level C4
  • Device Junction Temperature Range: -40°C to +150°C
• 4-V to 40-V Wide Vin Input Voltage Range With up to 45-V Transient
• Output Current: 150 mA
• Low Quiescent Current, I(q):
  • 2 µA When EN = Low (Shutdown Mode)
  • 12 µA Typical at Light Loads
• Low ESR Ceramic Output Stability Capacitor (2.2 µF-100 µF)
• 300-mV Dropout Voltage at 150 mA (Typical, V(Vin) = 4 V)
• Fixed (3.3-V and 5-V) and Adjustable (1.5-V to 5-V) Output Voltages (Adjustable for TPS7A66-Q1 Only)
• Low Input Voltage Tracking
• Integrated Power-On Reset:
  • Programmable Reset-Pulse Delay
  • Open-Drain Reset Output
• Integrated Fault Protection:
  • Thermal Shutdown
  • Short-Circuit Protection
  • Input Voltage Sense Comparator

• Infotainment Systems With Sleep Mode
• Body Control Modules
• Always-On Battery Applications:
  • Gateway Applications
  • Remote Keyless Entry Systems
  • Immobilizers
