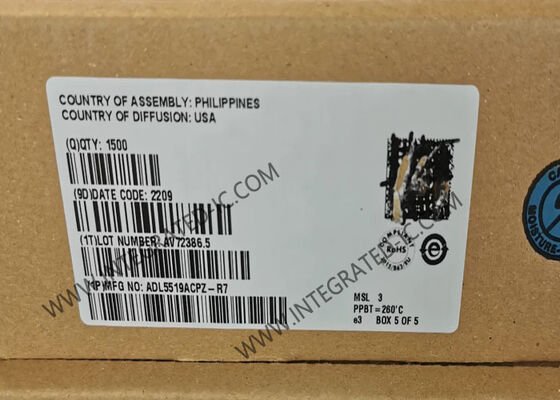

ADL5519ACPZ Integrated Circuit Chip 62dB Dynamic Range Dual-Demodulating Logarithmic Amplifier 1MHz to 10GHz

ADL5519ACPZ Integrated Circuit Chip 62dB Dynamic Range Dual-Demodulating Logarithmic Amplifier 1MHz to 10GHz
ADL5519ACPZ Integrated Circuit Chip 62dB Dynamic Range Dual-Demodulating Logarithmic Amplifier 1MHz to 10GHz

Large Image :  ADL5519ACPZ Integrated Circuit Chip 62dB Dynamic Range Dual-Demodulating Logarithmic Amplifier 1MHz to 10GHz

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADL5519ACPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFCSP-32
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

ADL5519ACPZ Integrated Circuit Chip 62dB Dynamic Range Dual-Demodulating Logarithmic Amplifier 1MHz to 10GHz

Description
Part Number: ADL5519ACPZ Frequency: 1MHz ~ 10GHz
RF Type: WiMax, WLAN Dynamic Range DB: 62 DB
Operating Supply Voltage: 3.3 V To 5.5 V Operating Temperature: -40°C ~ 125°C
Highlight:

62dB Dynamic Range Integrated Circuit Chip

,

1MHz to 10GHz Logarithmic Amplifier

,

Dual-Demodulating RF Detector

ADL5519ACPZ Integrated Circuit Chip 62dB Dual-Demodulating Logarithmic Amplifier LFCSP-32
Product Overview Of ADL5519

The ADL5519 is a dual-demodulating logarithmic amplifier that incorporates two AD8317s. It accurately converts RF input signals into corresponding decibel-scaled outputs, providing precisely scaled, independent logarithmic output voltages for both RF measurement channels.

The device features two additional output ports (OUTP and OUTN) that measure differences between the OUTA and OUTB channels. On-chip channel matching ensures log amplifier outputs remain insensitive to temperature and process variations.

Specifications Of ADL5519
Product Category RF Detector
Type Logarithmic Detector/Controller
Frequency Range 1 MHz to 10 GHz
Dynamic Range 62 dB
Configuration Single
Operating Supply Voltage 3.3 V to 5.5 V
Technology Si
Maximum Operating Temperature +125 ℃
Minimum Operating Temperature -40 ℃
Mounting Style SMD/SMT
Package / Case LFCSP-32
Key Features Of ADL5519
  • Wide bandwidth: 1 MHz to 10 GHz
  • Dual-channel and channel difference output ports
  • Integrated accurate scaled temperature sensor
  • 62 dB dynamic range (±3 dB)
  • >50 dB with ±1 dB up to 8 GHz
  • Stability over temperature: ±0.5 dB (−40°C to +85°C)
  • Low noise detector/controller outputs
  • Pulse response time: 6 ns/8 ns (fall time/rise time)
  • Supply operation: 3.3 V to 5.5 V @ 60 mA
  • Fabricated using high speed SiGe process
  • Small footprint, 5 mm × 5 mm, 32-lead LFCSP
  • Operating temperature range: −40°C to +125°C
Applications Of ADL5519
  • RF transmitter power amplifier linearization and gain/power control
  • Power monitoring in radio link transmitters
  • Dual-channel wireless infrastructure radios
  • Antenna VSWR monitor
  • RSSI measurement in base stations, WLAN, WiMAX, radar
Related Components In Stock
Part Number Package
MSP430F6731AIPNR LQFP-80
MSP430F6731AIPZR LQFP-100
MSP430F6733AIPNR LQFP-80
MSP430F6733AIPZR LQFP-100
DRA756BPGABCQ1 FCBGA-760
TDA2HVBRQABCRQ1 FCBGA-760
TDA2LFBTQABCRQ1 FCBGA-760
MSP430FR4131IPMR LQFP-64
MSP430FR4131IG56R TSSOP-56
MSP430FR4131IG48R TSSOP-48
MSP430FR4132IPMR LQFP-64
MSP430FR4132IG48R TSSOP-48
MSP430FR4132IG56R TSSOP-56
MSP430I2020TPWR TSSOP-28
MSP430I2020TRHBR VQFN-32
MSP430I2030TPWR TSSOP-28
MSP430I2031TPWR TSSOP-28
MSP430I2040TRHBR VQFN-32
MSP430I2040TPWR TSSOP-28
MSP430FR5887IRGCR VQFN-64
MSP430FR5887IPMR LQFP-64
MSP430FR5888IPM LQFP-64
MSP430FR5888IRGC VQFN-64
MSP430FR5986IPMR LQFP-64
MSP430FR5987IPMR LQFP-64
MSP430FR5989IRGCR VQFN-64
MSP430FR5989IPMR LQFP-64
MSP430FR6877IPNR LQFP-80
MSP430FR6877IPZR LQFP-100
MSP430FR6879IPZR LQFP-100
Product Tags
ADL5519ACPZ, ADL5519ACP, ADL5519AC, ADL5519A, ADL5519
