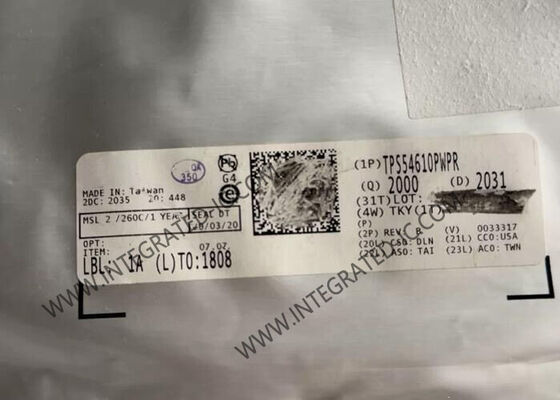

TPS54610PWPR Integrated Circuit Chip Synchronous Step-Down Converter with 3V to 6V Input and 6A Output Current at 700kHz Switching Frequency

TPS54610PWPR Integrated Circuit Chip Synchronous Step-Down Converter with 3V to 6V Input and 6A Output Current at 700kHz Switching Frequency
TPS54610PWPR Integrated Circuit Chip Synchronous Step-Down Converter with 3V to 6V Input and 6A Output Current at 700kHz Switching Frequency

Large Image :  TPS54610PWPR Integrated Circuit Chip Synchronous Step-Down Converter with 3V to 6V Input and 6A Output Current at 700kHz Switching Frequency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS54610PWPR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-28
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

TPS54610PWPR Integrated Circuit Chip Synchronous Step-Down Converter with 3V to 6V Input and 6A Output Current at 700kHz Switching Frequency

Description
Part Number: TPS54610PWPR Number Of Outputs: 1
Voltage - Input (Min): 3V Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 0.891V Voltage - Output (Max): 5.4V
Highlight:

3V to 6V Input Integrated Circuit Chip

,

6A Output Current Synchronous Step-Down Converter

,

700kHz Switching Frequency Buck Converter

TPS54610PWPR Integrated Circuit Chip 3V To 6V Input 6A Synchronous Step-Down Converter
Product Overview Of TPS54610

TPS54610 low-input voltage high-output current synchronous buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance and flexibility in choosing the output filter L and C components; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally or externally set slow-start circuit to limit inrush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing.

Specifications Of TPS54610
Topology Buck
Output Voltage 900 mV to 3.3 V
Output Current 6 A
Number of Outputs 1 Output
Quiescent Current 1 mA
Switching Frequency 700 kHz
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Input Voltage 3 V to 6 V
Operating Supply Current 11 mA
Unit Weight 118.500 mg
Key Features Of TPS54610
  • 30-mΩ, 12-A Peak MOSFET Switches for High Efficiency at 6-A Continuous Output Source or Sink Current
  • Adjustable Output Voltage Down to 0.9 V With 1.0% Accuracy
  • Wide PWM Frequency: Fixed 350 kHz, 550 kHz or Adjustable 280 kHz to 700 kHz
  • Synchronizable to 700 kHz
  • Load Protected by Peak Current Limit and Thermal Shutdown
  • Integrated Solution Reduces Board Area and Component Count
Applications Of TPS54610
  • Low-Voltage, High-Density Distributed Power Systems
  • Point of Load Regulation for High Performance DSPs, FPGAs, Microprocessors
  • Broadband, Networking and Optical Communications Infrastructure
  • Portable Computing/Notebook PCs
Product Tags

TPS54610PWPR, TPS54610PWP, TPS54610PW, TPS54610P, TPS54610
