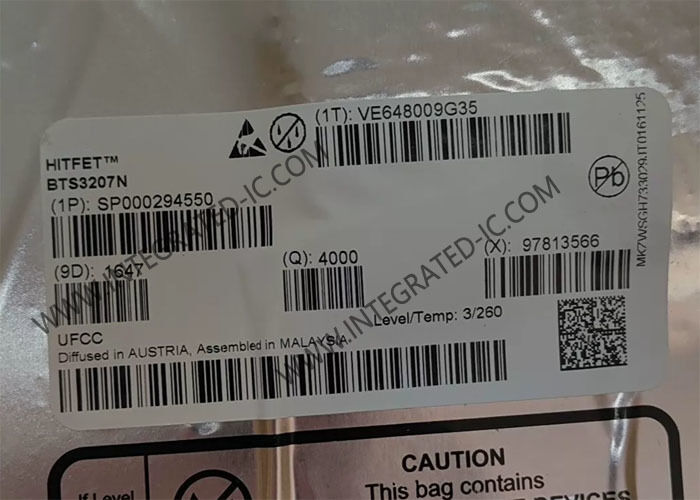

BTS3207N Integrated Circuit Chip 640mA Automotive Smart Low-Side Power Switch IC

BTS3207N Integrated Circuit Chip 640mA Automotive Smart Low-Side Power Switch IC
BTS3207N Integrated Circuit Chip 640mA Automotive Smart Low-Side Power Switch IC

Large Image :  BTS3207N Integrated Circuit Chip 640mA Automotive Smart Low-Side Power Switch IC

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BTS3207N
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-SOT223-4
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

BTS3207N Integrated Circuit Chip 640mA Automotive Smart Low-Side Power Switch IC

Description
Part Number: BTS3207N Output Configuration: Low Side
Voltage - Load: 42V (Max) Current - Output (Max): 640mA
Rds On (Typ): 500mOhm (Max) Operating Temperature: -40°C ~ 150°C (TJ)
Highlight:

640mA Integrated Circuit Chip

,

Automotive Power Switch IC

,

Low Side BTS3207N

BTS3207N Integrated Circuit Chip 640mA Automotive Smart Low-Side Power Switches PG-SOT223-4
Product Description Of BTS3207

BTS3207 is 640mA, Automotive Smart Low-Side Power Switches in Smart SIPMOS technology. Fully protected by embedded protection functions.

Specification Of BTS3207
Product Category Power Switch ICs - Power Distribution
Type Low Side
Number of Outputs 1 Output
Output Current 640 mA
Current Limit 7.5 A
On Resistance - Max 500 mOhms
On Time - Max 100 us
Off Time - Max 100 us
Operating Supply Voltage 1.3 V to 2.2 V
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +150 ℃
Mounting Style SMD/SMT
Package / Case SOT-223-4
Pd - Power Dissipation 3.8 W
Features Of BTS3207
  • Logic Level Input
  • Input Protection (ESD)
  • Thermal shutdown with auto restart
  • Green product (RoHS compliant)
  • Overload protection
  • Short circuit protection
  • Overvoltage protection
  • Current limitation
  • Analog driving possible
Applications Of BTS3207
  • All kinds of resistive, inductive and capacitive loads in switching or linear applications
  • uC compatible power switch for 12 V DC applications
  • Replaces electromechanical relays and discrete circuits
