BTG70013A-1ESW Integrated Circuit Chip PROFET™ Wire Guard 26.6A 1-Channel Smart High-Side Power Switch with 2.75V ~ 28V Supply Voltage

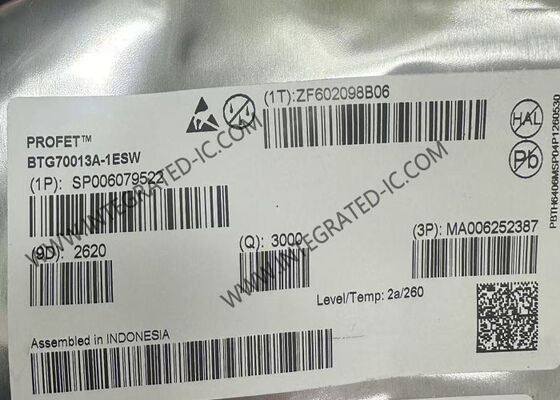

Large Image : BTG70013A-1ESW Integrated Circuit Chip PROFET™ Wire Guard 26.6A 1-Channel Smart High-Side Power Switch with 2.75V ~ 28V Supply Voltage

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BTG70013A-1ESW

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TSDSO-24
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

BTG70013A-1ESW Integrated Circuit Chip PROFET™ Wire Guard 26.6A 1-Channel Smart High-Side Power Switch with 2.75V ~ 28V Supply Voltage

Description

Part Number:	BTG70013A-1ESW	Number Of Outputs:	1
Ratio - Input:Output:	1:1	Voltage - Load:	2.75V ~ 28V
Voltage - Supply (Vcc/Vdd):	2.75V ~ 28V	Current - Output (Max):	26.6A
Highlight:	26.6A Output Current Integrated Circuit Chip , 1-Channel Smart High-Side Power Switch , 2.75V ~ 28V Supply Voltage PROFET™ Wire Guard

BTG70013A-1ESW Integrated Circuit Chip PROFET™ Wire Guard 12V 1.5mΩ 26.6A 1-Channel Smart High-Side Power Switch

Product Overview Of BTG70013

The single-channel high-side power switch BTG70013A-1ESW, member of the PROFET™ Wire Guard family, is designed for wire protection in modern automotive E/E architectures. It is equipped with integrated I²t wire protection and enhanced diagnostic capabilities. Its adjustable overcurrent protection threshold ensures fast failure isolation towards power supplies, and the automatic idle mode reduces current consumption to ~50 µA during parking.

Specifications Of BTG70013

Type	High-Side Switch
Number of Outputs	1 Output
Output Current	26.6 A
On Resistance - Max	2.8 mOhms
On Time - Max	160 µs
Off Time - Max	190 µs
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+105°C
Supply Voltage - Max	28 V
Supply Voltage - Min	2.75 V

Key Features Of BTG70013

High-side switch with embedded protection
Sequential diagnosis for status readout
Selectable integrated I²t protection
Operating current < 60 µA during parking
IDL pin for microcontroller wake-up
Adjustable overcurrent protection threshold
Capacitive load switching mode
Reverse ON for reverse polarity
Inverse current condition capable

Benefits Of BTG70013

Precise wire protection
Fast failure isolation to power supply
Precise application diagnostics
Dynamic load control during parking
Automatic Idle mode at ~50 µA
Fast, safe charging of big capacitors
Pin and footprint compatibility
ISO 26262-compliant

Applications Of BTG70013

Automotive smart high-side switch, power distribution wire protection, adjustable overcurrent protection, fast failure isolation.

Product Tags

BTG70013A-1ESW, BTG70013A-1ES, BTG70013A-1E, BTG70013A-1, BTG70013A, BTG70013
