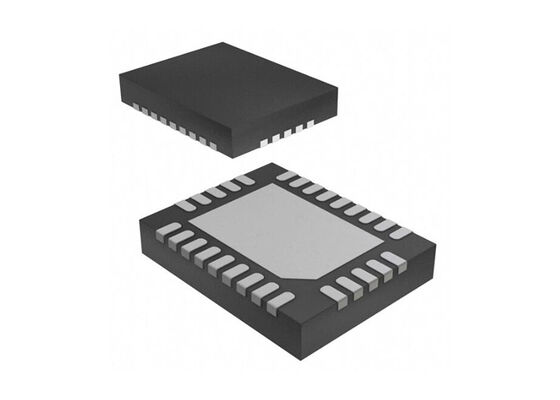

TPS53513RVER Integrated Circuit Chip 8A Output Current Synchronous SWIFT™ Buck Converter with 1.5V to 18V Input Voltage and D-CAP3™ Control Mode

TPS53513RVER Integrated Circuit Chip 8A Output Current Synchronous SWIFT™ Buck Converter with 1.5V to 18V Input Voltage and D-CAP3™ Control Mode
TPS53513RVER Integrated Circuit Chip 8A Output Current Synchronous SWIFT™ Buck Converter with 1.5V to 18V Input Voltage and D-CAP3™ Control Mode

Large Image :  TPS53513RVER Integrated Circuit Chip 8A Output Current Synchronous SWIFT™ Buck Converter with 1.5V to 18V Input Voltage and D-CAP3™ Control Mode

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS53513RVER
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-CLIP-28
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

TPS53513RVER Integrated Circuit Chip 8A Output Current Synchronous SWIFT™ Buck Converter with 1.5V to 18V Input Voltage and D-CAP3™ Control Mode

Description
Part Number: TPS53513RVER Voltage - Input (Min): 1.5V
Voltage - Output (Max): 5.5V Current - Output: 8A
Frequency - Switching: 200kHz ~ 1MHz Operating Temperature: -40°C ~ 85°C (TA)
Highlight:

8A Output Current Buck Converter

,

1.5V to 18V Input Voltage Integrated Circuit Chip

,

D-CAP3™ Control Mode Synchronous SWIFT™ Converter

TPS53513 Integrated Circuit Chip 8A Synchronous SWIFT™ Buck Converter VQFN-CLIP-28
Product Overview Of TPS53513

TPS53513 is a small-sized, synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device offers ease-of-use and low external-component count for space-conscious power systems.

TPS53513 features high-performance integrated MOSFETs, accurate 0.5% 0.6-V reference, and an integrated boost switch. Competitive features include very low external-component count, fast load-transient response, auto-skip mode operation, internal soft-start control, and no requirement for compensation.

Specifications Of TPS53513
Product Category: Switching Voltage Regulators
Mounting Style: SMD/SMT
Package / Case: VQFN-CLIP-EP-28
Topology: Buck
Output Voltage: 600 mV to 5.5 V
Output Current: 8 A
Number of Outputs: 1 Output
Quiescent Current: 850 uA
Switching Frequency: 1 MHz
Minimum Operating Temperature: -40 ℃
Maximum Operating Temperature: +85 ℃
Input Voltage: 1.5 V to 18 V
Key Features Of TPS53513
  • Integrated 13.8-mΩ and 5.9-mΩ MOSFETs with 8-A continuous output current
  • Supports all ceramic output capacitors
  • Reference voltage 600 mV ±0.5% tolerance
  • Output voltage range: 0.6 V to 5.5 V
  • D-CAP3™ control mode with fast load-step response
  • Auto-skipping Eco-mode™ for high light-load efficiency
  • FCCM for tight output ripple and voltage requirements
  • Eight selectable frequency settings from 250 kHz to 1 MHz
  • Precharged start-up capability
  • Built-in output discharge circuit
  • Open-drain power-good output
  • 3.5 mm × 4.5 mm, 28-pin, VQFN package
Applications Of TPS53513
  • Server and cloud-computing POLs
  • Broadband, networking, and optical communications infrastructure
  • I/O supplies
