TLV320DAC3101IRHBR Integrated Circuit Chip Low-Power 32-bit Resolution Audio DAC with 192kHz Sampling Rate

TLV320DAC3101IRHBR Integrated Circuit Chip Low-Power 32-bit Resolution Audio DAC with 192kHz Sampling Rate
TLV320DAC3101IRHBR Integrated Circuit Chip Low-Power 32-bit Resolution Audio DAC with 192kHz Sampling Rate

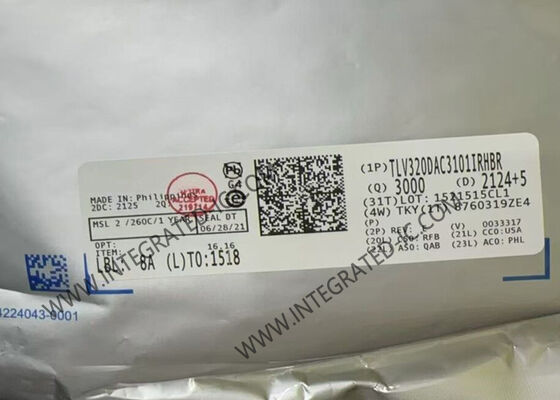

Large Image :  TLV320DAC3101IRHBR Integrated Circuit Chip Low-Power 32-bit Resolution Audio DAC with 192kHz Sampling Rate

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TLV320DAC3101IRHBR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-32
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

TLV320DAC3101IRHBR Integrated Circuit Chip Low-Power 32-bit Resolution Audio DAC with 192kHz Sampling Rate

Description
Part Number: TLV320DAC3101IRHBR Resolution (Bits): 32 B
Sampling Rate (Per Second): 192k Data Interface: I2C, Serial
Voltage - Supply: 1.8V, 3.3V Operating Temperature: -40°C ~ 85°C
Highlight:

Low-Power Integrated Circuit Chip

,

32-bit Resolution Audio DAC

,

192kHz Sampling Rate TLV320DAC3101IRHBR

TLV320DAC3101 Integrated Circuit Chip Low-Power Stereo Audio DAC VQFN-32 Class-D Stereo Speaker Amp
Product Overview Of TLV320DAC3101

TLV320DAC3101 is a low-power, highly integrated, high-performance DAC with selectable digital audio processing blocks and 24-bit stereo playback. This integrated circuit chip integrates headphone drivers and speaker drivers with a suite of built-in processing blocks for digital audio processing. The digital audio data format is programmable to work with popular audio standard protocols (I2S, left-justified, and right-justified) in master, slave, DSP, and TDM modes.

Specifications Of TLV320DAC3101
Product CategoryAudio D/A Converter ICs
Number of Converters2 Converter
Sampling Rate192 kHz
Interface TypeI2C
Resolution32 bit
Package / CaseVQFN-32
Number of DAC Outputs4 Output
SNR - Signal to Noise Ratio95 dB
Minimum Operating Temperature-40℃
Maximum Operating Temperature+85℃
Mounting StyleSMD/SMT
Key Features Of TLV320DAC3101
  • Stereo Audio DAC With 95-dB SNR
  • Supports 8-kHz to 192-kHz Sample Rates
  • Stereo 1.29-W Class-D BTL 8-Ω Speaker Driver With Direct Battery Connection
  • 25 Built-In Processing Blocks (PRB_P1 - PRB_P25) Providing Biquad Filters, DRC, and 3D
  • Digital Sine-Wave Generator for Beeps and Key-Clicks (PRB_P25)
  • User-Programmable Biquad and FIR Filters
  • Two Single-Ended Inputs With Mixing and Output Level Control
  • Stereo Headphone or Lineout and Class-D Speaker Outputs Available
  • Microphone Bias
  • Headphone Detection
  • Digital Mixing Capability
  • Pin Control or Register Control for Digital-Playback Volume-Control Settings
  • Programmable PLL for Flexible Clock Generation
  • I2S, Left-Justified, Right-Justified, DSP, and TDM Audio Interfaces
  • I2C Control With Register Auto-Increment
  • Full Power-Down Control
  • Power Supplies: Analog: 2.7 V-3.6 V, Digital Core: 1.65 V-1.95 V, Digital I/O: 1.1 V-3.6 V, Class-D: 2.7 V-5.5 V
  • 5-mm × 5-mm 32-QFN Package
Applications Of TLV320DAC3101
  • Portable Audio Devices
  • Mobile Internet Devices
  • e-Books
