2315239-2 6POS Automotive HSD Data Connectivity Header with Vertical PCB Mount

2315239-2 6POS Automotive HSD Data Connectivity Header with Vertical PCB Mount
2315239-2 6POS Automotive HSD Data Connectivity Header with Vertical PCB Mount

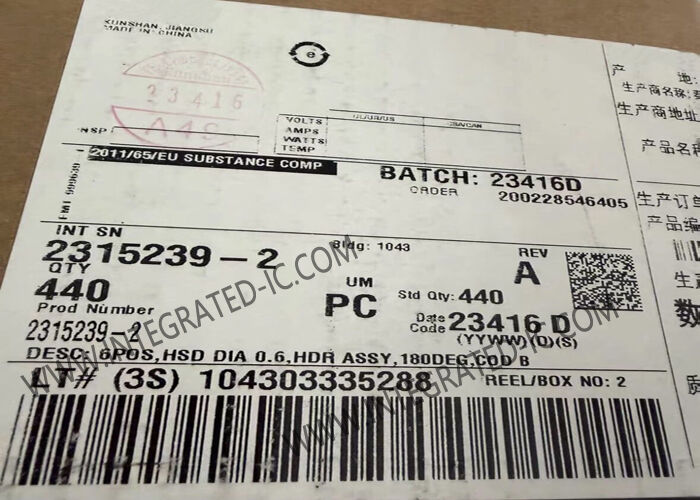

Large Image :  2315239-2 6POS Automotive HSD Data Connectivity Header with Vertical PCB Mount

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 2315239-2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 6POS
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

2315239-2 6POS Automotive HSD Data Connectivity Header with Vertical PCB Mount

Description
Part Number: 2315239-2 Features Code: B
Voltage Rating: 100 V Number Of Positions: 6
PCB Mount Orientation: Vertical Operating Temperature: -40°C ~ 105°C
Highlight:

6POS Header

,

HSD Data Connectivity Header

,

Vertical PCB Mount Connector

2315239-2 Connectors Automotive Connectors 6POS Automotive HSD Data Connectivity Headers
Product Description Of 2315239-2

2315239-2 is a 6-pin, automotive-grade HSD data connection header featuring right-angle through-holes and on-board mounting. It is commonly used as a signal transmission interface in industrial, telecommunications, computing and medical equipment.

Specification Of 2315239-2
Series HSD High-Speed Data Connectors
Code B Code
Connector System Wire-to-Board
PCB Mounting Orientation Vertical
Number of Pins 6-pin, dual-row configuration, pin diameter 0.6 mm
Mounting Method Vertical PCB mounting, through-hole soldering, 180° assembly angle
Shielding Full metal shielding structure to suppress EMI and ensure high-speed signal integrity
Sealing Characteristics Non-sealed type, no waterproof structure
Contact Plating Gold-plated contact areas, tin-plated solder tabs
Operating Temperature -40°C to +105°C
Pin Centre-to-Centre Distance 2 mm / 2.54 mm
Connector Type Wire-to-Board, Header
Features Of 2315239-2
  • Connector & Contact Terminates To: Printed Circuit Board
  • Connector System: Wire-to-Board
  • Sealable: No
  • Number of Rows: 2
  • PCB Mount Orientation: Vertical
  • Number of Positions: 6
  • Connector & Keying Code: B
  • Contact Mating Area Plating Material: Gold (Au) | Tin (Sn)
  • Mating Tab Width: 0.63 mm [0.02 in]
  • Mating Tab Thickness: 0.63 mm [0.02 in]
  • Mating Pin Diameter: 0.6 mm [0.02 in]
  • Contact Current Rating: 2.5 | 5 A
  • Termination Method to PCB: Through Hole - Solder
  • Connector Mounting Type: Board Mount
  • Housing Color: White
  • Centerline (Pitch): 2 | 2.54 mm [0.07 | 0.1 in]
  • Operating Temperature Range: -40°C to +105°C [-40°F to +221°F]
Applications Of 2315239-2
  • In-vehicle surround-view cameras
  • Front-facing ADAS cameras
  • In-vehicle infotainment
  • High-speed video transmission for in-vehicle multimedia systems
  • High-speed signal connections for in-vehicle displays
  • High-speed data links for autonomous driving perception systems
