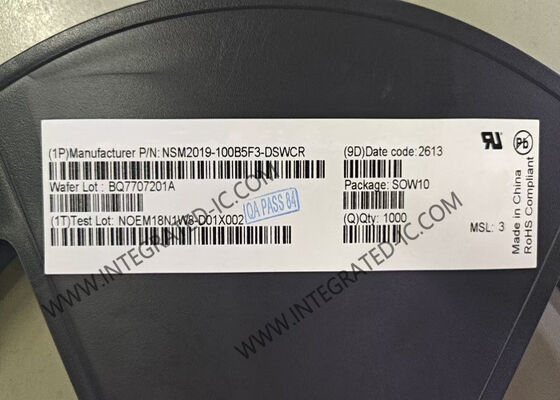

NSM2019-100B5F3-DSWCR Sensor IC Integrated 1-Channel Hall Effect Bidirectional Current Sensor ±100A

NSM2019-100B5F3-DSWCR Sensor IC Integrated 1-Channel Hall Effect Bidirectional Current Sensor ±100A
NSM2019-100B5F3-DSWCR Sensor IC Integrated 1-Channel Hall Effect Bidirectional Current Sensor ±100A

Large Image :  NSM2019-100B5F3-DSWCR Sensor IC Integrated 1-Channel Hall Effect Bidirectional Current Sensor ±100A

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NSM2019-100B5F3-DSWCR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-10
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000 Pieces per Day
Contact Now

NSM2019-100B5F3-DSWCR Sensor IC Integrated 1-Channel Hall Effect Bidirectional Current Sensor ±100A

Description
Part Number: NSM2019-100B5F3-DSWCR Current - Sensing: ±100A
Number Of Channels: 1 Sensitivity: 20mV/A
Frequency: DC ~ 320kHz Linearity: ±0.2%
Highlight:

±100A Sensor IC

,

1-Channel Hall Effect Current Sensor

,

Bidirectional Integrated Current Sensor

NSM2019-100B5F3-DSWCR Sensor IC Integrated 1-Channel Hall Effect Bidirectional Current Sensor
Product Overview Of NSM2019

NSM2019 is an integrated path current sensor with a very low on-resistance of 0.27mΩ, significantly reducing heat loss on the chip.

Key Features Of NSM2019
  • 20~200A wide current range
  • AC/DC input compatibility
  • 3.3V/5V single power supply
  • 0.27mΩ low input conduction impedance
  • ±2% current measurement accuracy
  • 1.5μs response time
  • 320kHz signal bandwidth
  • Withstands up to 20kA surge current (8μs/20μs surge current waveform)
  • Fixed output and reference output
  • Over current detection by fault pin
  • SOW10 package with 1618VDC working isolation voltage / 5000 Vrms @ 1 min withstand isolation voltage
  • 8.2mm creepage distance
  • 8.2mm clearance distance
  • Common-mode magnetic field rejection
  • -40°C to 150°C operating temperature range
Applications Of NSM2019
  • Solar Systems
  • Industrial Power Supplies
  • Motor Control
  • OBC/DCDC/PTC Heaters
  • Charging Piles
