LT1761IS5-5 100mA Low Noise LDO Voltage Regulator with 5V Fixed Output Micropower Regulator

LT1761IS5-5 100mA Low Noise LDO Voltage Regulator with 5V Fixed Output Micropower Regulator
LT1761IS5-5 100mA Low Noise LDO Voltage Regulator with 5V Fixed Output Micropower Regulator

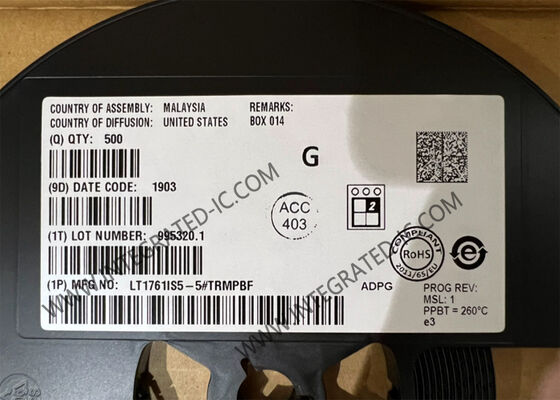

Large Image :  LT1761IS5-5 100mA Low Noise LDO Voltage Regulator with 5V Fixed Output Micropower Regulator

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LT1761IS5-5
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSOT-23-5
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

LT1761IS5-5 100mA Low Noise LDO Voltage Regulator with 5V Fixed Output Micropower Regulator

Description
Part Number: LT1761IS5-5 Voltage - Input (Max): 20V
Voltage - Output (Min/Fixed): 5V Current - Output: 100mA
PSRR: 65dB (120Hz) Operating Temperature: -40°C ~ 125°C
Highlight:

100mA LDO Voltage Regulator

,

Low Noise Low Dropout Regulator

,

5V Fixed Output Micropower Regulator

LT1761 Integrated Circuit Chip 100mA Low Noise LDO Micropower Regulators TSOT-23-5 Low Dropout Regulators
Product Overview Of LT1761

LT1761 is a micropower, low noise, low dropout regulator designed for battery-powered systems. With an external 0.01μF bypass capacitor, output noise drops to 20μVRMS over a 10Hz to 100kHz bandwidth. The low 20μA quiescent current makes it ideal for power-sensitive applications.

Specifications Of LT1761
Product Category LDO Voltage Regulators
Mounting Style SMD/SMT
Package / Case SOT-23-5
Output Voltage 5 V
Output Current 100 mA
Number of Outputs 1 Output
Polarity Positive
Quiescent Current 10 nA
PSRR / Ripple Rejection - Typ 65 dB
Output Type Fixed
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Dropout Voltage 300 mV
Dropout Voltage - Max 450 mV
Ib - Input Bias Current 30 uA
Line Regulation 1 mV
Load Regulation 25 mV
Operating Supply Current 20 uA
Key Features Of LT1761
  • Low Noise: 20μVRMS (10Hz to 100kHz)
  • Low Quiescent Current: 20μA
  • Wide Input Voltage Range: 1.8V to 20V
  • Output Current: 100mA
  • Very Low Shutdown Current: <0.1μA
  • Low Dropout Voltage: 300mV at 100mA
  • Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2V, 2.5V, 2.8V, 3V, 3.3V, 5V
  • Adjustable Output from 1.22V to 20V
  • Stable with 1μF Output Capacitor
  • Stable with Aluminum, Tantalum or Ceramic Capacitors
  • Reverse-Battery Protected
  • No Reverse Current
  • No Protection Diodes Needed
  • Overcurrent and Overtemperature Protected
  • Available in Tiny 5-Lead TSOT-23 Package
Applications Of LT1761
  • Cellular Phones
  • Pagers
  • Battery-Powered Systems
  • Frequency Synthesizers
  • Wireless Modems
