IPW60R041C6 Integrated Circuit Chip N-Channel 600V 77.5A CoolMOS™ C6 Power Transistor

IPW60R041C6 Integrated Circuit Chip N-Channel 600V 77.5A CoolMOS™ C6 Power Transistor
IPW60R041C6 Integrated Circuit Chip N-Channel 600V 77.5A CoolMOS™ C6 Power Transistor

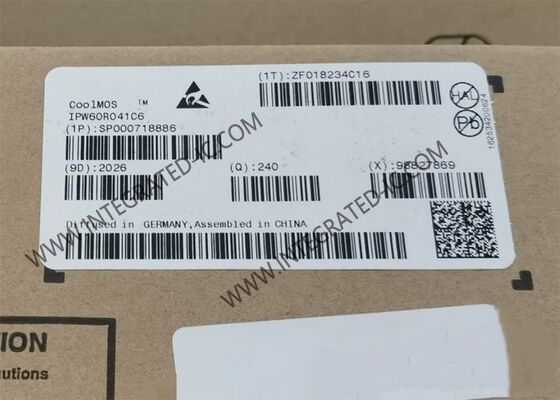

Large Image :  IPW60R041C6 Integrated Circuit Chip N-Channel 600V 77.5A CoolMOS™ C6 Power Transistor

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IPW60R041C6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000 Pieces per Day
Contact Now

IPW60R041C6 Integrated Circuit Chip N-Channel 600V 77.5A CoolMOS™ C6 Power Transistor

Description
Part Number: IPW60R041C6 Drain To Source Voltage (Vdss): 600 V
Current - Continuous Drain (Id) @ 25°C: 77.5A (Tc) Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V Power Dissipation (Max): 481W (Tc)
Highlight:

600V Power Transistor

,

77.5A MOSFET

,

CoolMOS™ C6 Integrated Circuit Chip

IPW60R041C6 Integrated Circuit Chip N-Channel 600V 77.5A CoolMOS™ C6 Power Transistors
Product Overview Of IPW60R041C6

IPW60R041C6 is an N-Channel 600V 77.5A CoolMOS™ C6 Power Transistor. CoolMOS™ C6 combines experience as the leading superjunction MOSFET supplier with best-in-class innovation. The C6 devices provide all benefits of a fast switching superjunction MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler.

Technical Specifications Of IPW60R041C6
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 600 V
Id - Continuous Drain Current 77.5 A
Rds On - Drain-Source Resistance 37 mOhms
Vgs - Gate-Source Voltage 20 V
Vgs th - Gate-Source Threshold Voltage 2.5 V
Qg - Gate Charge 290 nC
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +150 °C
Pd - Power Dissipation 481 W
Fall Time 7 ns
Product Type MOSFETs
Rise Time 10 ns
Transistor Type 1 N-Channel
Typical Turn-Off Delay Time 130 ns
Typical Turn-On Delay Time 23 ns
Unit Weight 6 g
Key Features Of IPW60R041C6
  • Easy control of switching behavior
  • Extremely low losses due to very low Figure of Merit (RDS(on)* Qg and Eoss)
  • Very high commutation ruggedness
  • Easy to use
  • Better light load efficiency compared to C3
  • Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness
  • Better price performance in comparison to previous CoolMOS™ generations
  • More efficient, more compact, lighter and cooler
Product Benefits Of IPW60R041C6
  • Improved power density
  • Improved reliability
  • General purpose part can be used in both soft and hard switching topologies
  • Better light load efficiency
  • Improved efficiency in hard switching applications
  • Improved ease-of-use
  • Reduces possible ringing due to PCB layout and package parasitic effects
Applications Of IPW60R041C6

PFC stages, hard switching PWM stages and resonant switching PWM stages for PC Silverbox, Adapter, LCD & PDPTV, Lighting, Server, Telecom and UPS applications.
