NSI6622A-DSWR High Reliability Isolated Dual-Channel Gate Driver IC with High CMTI ±150kV/μs

NSI6622A-DSWR High Reliability Isolated Dual-Channel Gate Driver IC with High CMTI ±150kV/μs
NSI6622A-DSWR High Reliability Isolated Dual-Channel Gate Driver IC with High CMTI ±150kV/μs

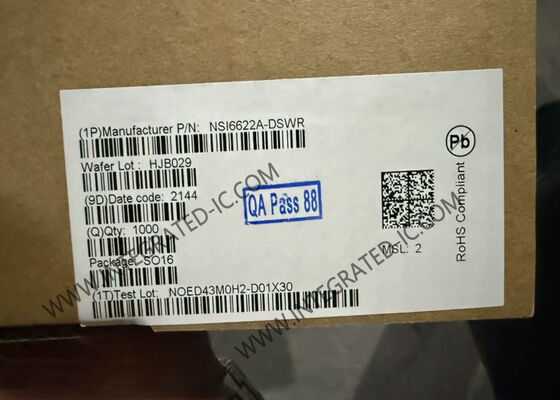

Large Image :  NSI6622A-DSWR High Reliability Isolated Dual-Channel Gate Driver IC with High CMTI ±150kV/μs

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NSI6622A-DSWR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOW-16
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

NSI6622A-DSWR High Reliability Isolated Dual-Channel Gate Driver IC with High CMTI ±150kV/μs

Description
Part Number: NSI6622A-DSWR Operation Temperature: -40℃~125℃
Input Side Supply Voltage: 2.7V To 5.5V High CMTI: ±150kV/μs
Highlight:

High Reliability Gate Driver IC

,

Isolated Dual-Channel Integrated Circuit Chip

,

High CMTI ±150kV/μs NSI6622A-DSWR

NSI6622A-DSWR Integrated Circuit Chip High Reliability Isolated Dual-Channel Gate Driver
Product Overview Of NSI6622

The NSI6622 family comprises high-reliability isolated dual-channel gate driver ICs designed to drive power transistors at switching frequencies up to 2MHz. Each output channel can source 4A and sink 6A peak current, featuring fast 25ns propagation delay and 5ns maximum delay matching.

The driver operates with a maximum supply voltage of 25V, while the input-side accepts supply voltages from 2.7V to 5.5V. All power supply voltage pins include under voltage lock-out (UVLO) protection.

Key Features Of NSI6622
  • Isolated dual channel driver
  • Input side supply voltage: 2.7V to 5.5V
  • Driver side supply voltage: up to 25V with UVLO
  • 4A peak source and 6A peak sink output
  • High CMTI: ±150kV/μs
  • 19ns typical propagation delay
  • 5ns maximum delay matching
  • 6ns maximum pulse width distortion
  • Accepts minimum input pulse width of 20ns
  • Operating temperature: -40℃ to 125℃
  • RoHS & REACH Qualified
Applications Of NSI6622
  • Isolated DC-DC and AC-to-DC power supplies
  • DC-to-AC solar inverters
  • Motor drives and EV charging
  • UPS and battery chargers
Product Tags
NSI6622A-DSW, NSI6622A-DS, NSI6622A-D, NSI6622A, NSI6622
