NSM2011-100B5R-DSWR High-Accuracy Hall-Effect-Based Current Sensor IC with ±100A and 240kHz Bandwidth

NSM2011-100B5R-DSWR High-Accuracy Hall-Effect-Based Current Sensor IC with ±100A and 240kHz Bandwidth
NSM2011-100B5R-DSWR High-Accuracy Hall-Effect-Based Current Sensor IC with ±100A and 240kHz Bandwidth

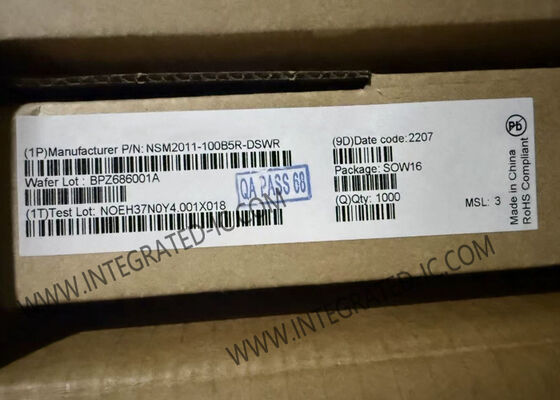

Large Image :  NSM2011-100B5R-DSWR High-Accuracy Hall-Effect-Based Current Sensor IC with ±100A and 240kHz Bandwidth

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NSM2011-100B5R-DSWR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 16-SOIC
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

NSM2011-100B5R-DSWR High-Accuracy Hall-Effect-Based Current Sensor IC with ±100A and 240kHz Bandwidth

Description
Part Number: NSM2011-100B5R-DSWR Current - Sensing: ±100A
Number Of Channels: 1 Sensitivity: 20mV/A
Frequency: DC ~ 240kHz Linearity: ±0.2%
Highlight:

High-Accuracy Sensor IC

,

±100A Current Sensor IC

,

240kHz Hall-Effect-Based Current Sensor IC

NSM2011-100B5R-DSWR Sensor IC High-Accuracy Hall-Effect-Based Current Sensor IC
Product Overview Of NSM2011

NSM2011 is an integrated path current sensor with a very low on-resistance of 0.85mΩ, reducing heat loss on the chip.

Key Features Of NSM2011
  • High bandwidth and fast response time: 240kHz bandwidth, 2.2μs response time
  • High-precision current measurement
  • Differential Hall sets provide immunity to stray fields
  • High isolation level meeting UL standards
  • Maximum repeated isolation withstand voltage (VIROM): 1550Vpk
  • Maximum working isolation withstand voltage (VIOWM): 1097Vrms
  • Withstand isolation voltage (VISO): 5000Vrms
  • Maximum surge isolation withstand voltage (VIOSM): 10kV
  • Maximum surge current (Isurge): 13kA
  • CMTI > 100V/ns
  • CTI (1) - Creepage distance/Clearance distance: 8mm
  • External capacitor on Filter pin reduces noise (sacrifices bandwidth)
  • NOVOSENSE innovative 'Spin Current' technology minimizes offset temperature drift
  • Ratiometric output
  • Operating temperature: -40°C to 125°C
  • Primary internal resistance: 0.85mΩ
  • Wide body SOIC16 package
  • UL62368/EN62368 safety certification
  • ROHS compliance
Applications Of NSM2011
  • Solar Systems
  • Industrial Power Supplies
  • Motor Control
  • OBC/DCDC/PTC Heaters
  • Charging Piles
