DS28EA00U Sensor IC 1-Wire® Digital Thermometer with ±0.5°C Accuracy and 11-bit Resolution

DS28EA00U Sensor IC 1-Wire® Digital Thermometer with ±0.5°C Accuracy and 11-bit Resolution
DS28EA00U Sensor IC 1-Wire® Digital Thermometer with ±0.5°C Accuracy and 11-bit Resolution

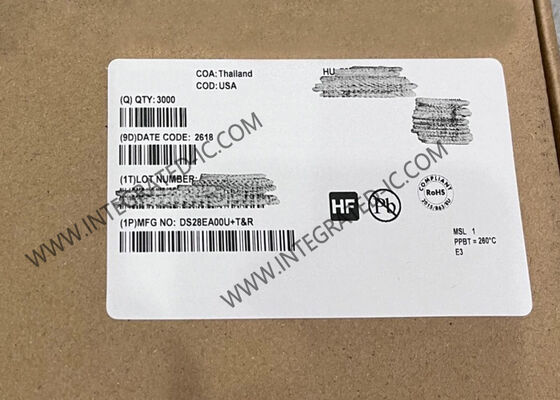

Large Image :  DS28EA00U Sensor IC 1-Wire® Digital Thermometer with ±0.5°C Accuracy and 11-bit Resolution

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: DS28EA00U
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: µSOP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

DS28EA00U Sensor IC 1-Wire® Digital Thermometer with ±0.5°C Accuracy and 11-bit Resolution

Description
Part Number: DS28EA00U Output Type: 1-Wire®
Resolution: 11 B Voltage - Supply: 3V ~ 5.5V
Accuracy - Highest (Lowest): ±0.5°C (-0.5°C, 2°C) Operating Temperature: -40°C ~ 85°C
Highlight:

1-Wire® Interface Sensor IC

,

±0.5°C Accuracy Digital Thermometer

,

11-bit Resolution Temperature Sensor

DS28EA00 Sensor IC 1-Wire Digital Thermometer µSOP-8 Digital Temperature Sensor
Product Overview Of DS28EA00

DS28EA00 is a digital thermometer with 9-bit (0.5°C) to 12-bit (1/16°C) resolution and alarm function with nonvolatile (NV), user-programmable upper and lower trigger points. Each DS28EA00 has its unique 64-bit registration number that is factory-programmed into the chip. Data is transferred serially through the 1-Wire® protocol, which requires only one data line and a ground for communication.

Specifications Of DS28EA00
Sensor Type Digital, Local
Output Type 1-Wire®
Voltage - Supply 3V ~ 5.5V
Resolution 11 b
Features Output Switch, Programmable Limit, Programmable Resolution
Accuracy - Highest (Lowest) ±0.5°C (-0.5°C, 2°C)
Test Condition -10°C ~ 85°C (<-10°C)
Sensing Temperature - Local -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package 8-uMAX/uSOP
Key Features Of DS28EA00
  • Digital Thermometer Measures Temperatures from -40°C to +85°C
  • Thermometer Resolution is User-Selectable from 9 to 12 Bits
  • Unique 1-Wire Interface Requires Only One Port Pin for Communication
  • Each Device has a Unique 64-Bit Factory-Lasered Registration Number
  • ROM Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
  • Improved 1-Wire Interface with Hysteresis and Glitch Filter
  • User-Definable Nonvolatile (NV) Alarm Threshold Settings/User Bytes
  • Alarm Search Command to Quickly Identify Devices Whose Temperature is Outside of Programmed Limits
  • Standard and Overdrive 1-Wire Speed
  • Two General-Purpose Programmable IO (PIO) Pins
  • Chain Function Sharing the PIO Pins to Detect Physical Sequence of Devices in Network
  • Operating Range: 3.0V to 5.5V, -40°C to +85°C
  • Can be Powered from Data Line
  • 8-Pin µSOP Package
Applications Of DS28EA00
  • Any Rack-Based Electronic System
  • Climate Control
  • Data communication equipment
  • Process Temperature Monitoring
  • Servers
  • Wireless Basestations
