AD8628ARZ Wide Bandwidth Zero-Drift Rail-to-Rail Operational Amplifier SOIC-8 Integrated Circuit Chip

AD8628ARZ Wide Bandwidth Zero-Drift Rail-to-Rail Operational Amplifier SOIC-8 Integrated Circuit Chip
AD8628ARZ Wide Bandwidth Zero-Drift Rail-to-Rail Operational Amplifier SOIC-8 Integrated Circuit Chip

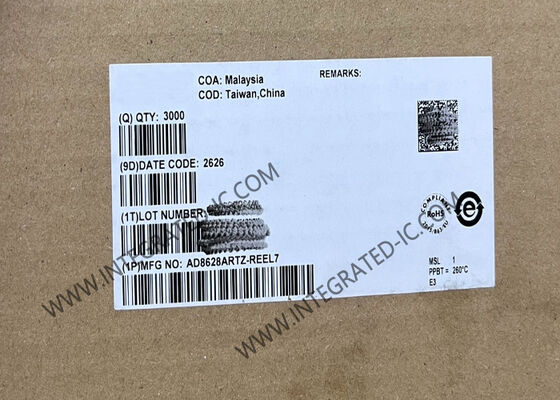

Large Image :  AD8628ARZ Wide Bandwidth Zero-Drift Rail-to-Rail Operational Amplifier SOIC-8 Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD8628ARZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8​
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

AD8628ARZ Wide Bandwidth Zero-Drift Rail-to-Rail Operational Amplifier SOIC-8 Integrated Circuit Chip

Description
Part Number: AD8628ARZ Amplifier Type: Zero-Drift
Output Type: Rail-to-Rail Current - Input Bias: 30 PA
Current - Supply: 850µA Operating Temperature: -40°C ~ 125°C
Highlight:

Zero-Drift Operational Amplifier

,

Rail-to-Rail Op Amp

,

Wide Bandwidth Integrated Circuit Chip

AD8628 Integrated Circuit Chip Wide Bandwidth Zero-Drift Operational Amplifier SOIC-8
Product Overview Of AD8628

AD8628 is a wide bandwidth auto-zero amplifier featuring rail-to-rail input and output swing with low noise. Operation is fully specified from 2.7 V to 5 V single supply (±1.35 V to ±2.5 V dual supply).

Specifications Of AD8628
Product Category Precision Amplifiers
Number of Channels 1 Channel
GBP - Gain Bandwidth Product 2.5 MHz
SR - Slew Rate 1 V/μs
Vos - Input Offset Voltage 1 μV
Ib - Input Bias Current 100 pA
Supply Voltage - Max 2.5 V, 5 V
Supply Voltage - Min 1.35 V, 2.7 V
Operating Supply Current 1 mA
Output Current per Channel 30 mA
CMRR - Common Mode Rejection Ratio 140 dB
en - Input Voltage Noise Density 22 nV/√Hz
Package / Case SOIC-8
Mounting Style SMD/SMT
Shutdown No Shutdown
Minimum Operating Temperature -40℃
Maximum Operating Temperature +125℃
PSRR - Power Supply Rejection Ratio 130 dB
Key Features Of AD8628
  • Lowest auto-zero amplifier noise
  • Low offset voltage: 1 μV
  • Input offset drift: 0.002 μV/°C
  • Rail-to-rail input and output swing
  • 5 V single-supply operation
  • High gain, CMRR, and PSRR: 130 dB
  • Very low input bias current: 100 pA maximum
  • Low supply current: 1.0 mA
  • Overload recovery time: 50 μs
  • No external components required
  • Qualified for automotive applications
Applications Of AD8628
  • Automotive sensors
  • Pressure and position sensors
  • Strain gage amplifiers
  • Medical instrumentation
  • Thermocouple amplifiers
  • Precision current sensing
  • Photodiode amplifiers
Related Components
AD8628ARZ
AD8628AR
AD8628A
AD8628
Frequently Asked Questions
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample? Is the sample free?
A: Yes, we support sample order and small order. Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
