AD7606BSTZ-4 Integrated Circuit Chip 16-Bit Resolution ADC with 200k Sampling Rate and Simultaneous Sampling

AD7606BSTZ-4 Integrated Circuit Chip 16-Bit Resolution ADC with 200k Sampling Rate and Simultaneous Sampling
AD7606BSTZ-4 Integrated Circuit Chip 16-Bit Resolution ADC with 200k Sampling Rate and Simultaneous Sampling

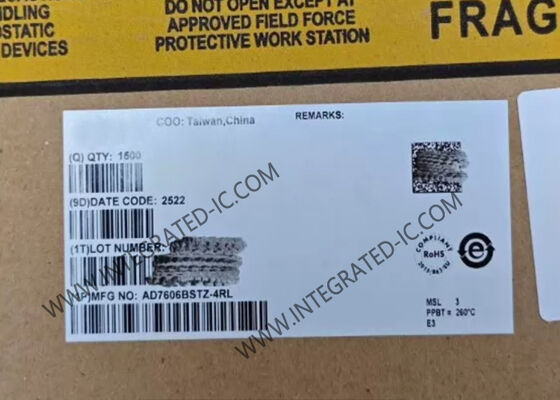

Large Image :  AD7606BSTZ-4 Integrated Circuit Chip 16-Bit Resolution ADC with 200k Sampling Rate and Simultaneous Sampling

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD7606BSTZ-4
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AD7606BSTZ-4 Integrated Circuit Chip 16-Bit Resolution ADC with 200k Sampling Rate and Simultaneous Sampling

Description
Part Number: AD7606BSTZ-4 Number Of Channels: 4
Resolution (Bits): 16 B Sampling Rate (Per Second): 200k
Voltage - Supply: 2.3V ~ 5.25V, 4.75V ~ 5.25V Operating Temperature: -40°C ~ 85°C
Highlight:

16-Bit Resolution ADC

,

200k Sampling Rate ADC

,

Simultaneous Sampling Integrated Circuit Chip

AD7606BSTZ-4 Integrated Circuit Chip 8-Channel DAS With 16-Bit Bipolar Input Simultaneous Sampling ADC
Product Overview Of AD7606

The AD7606 is a 16-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) available in eight, six, and four channel configurations. Each device includes comprehensive features such as analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation ADC, a flexible digital filter, a 2.5V reference and reference buffer, along with high-speed serial and parallel interfaces.

Specifications Of AD7606
Resolution 16 bit
Number of Channels 4 Channel
Interface Type Parallel, SPI
Sampling Rate 200 kS/s
Input Type Single-Ended
Architecture SAR
SNR - Signal to Noise Ratio 95.5 dB
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Power Dissipation 111 mW
Supply Voltage - Max 5 V
Supply Voltage - Min 5 V
Unit Weight 342.700 mg
Key Features Of AD7606
  • 8/6/4 simultaneously sampled inputs
  • Single 5V analog supply and 2.3V to 5V VDRIVE
  • Pin-to-pin compatible with AD7606B
  • Fully integrated data acquisition solution
  • Analog input clamp protection
  • Input buffer with 1 MΩ analog input impedance
  • Second-order antialiasing analog filter
  • On-chip accurate reference and reference buffer
  • 16-bit ADC with 200 kSPS on all channels
  • Oversampling capability with digital filter
  • 7 kV ESD rating on analog input channels
  • SPI/QSPI™/MICROWIRE™/DSP compatible
  • Temperature range: −40°C to +85°C
  • 64-lead LQFP package
  • Flexible parallel/serial interface
  • True bipolar analog input ranges: ±10V, ±5V
Applications Of AD7606
  • Power-line monitoring and protection systems
  • Multiphase motor control
  • Instrumentation and control systems
  • Multiaxis positioning systems
  • Data acquisition systems (DAS)
