SKIIP34NAB12T4V1 Automotive IGBT Module MiniSKiiP 3 with 1200V 35A and Trench 4 IGBTs

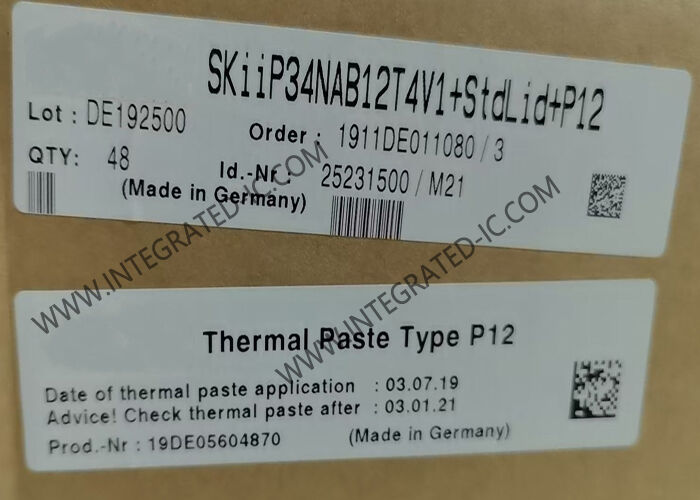

Large Image : SKIIP34NAB12T4V1 Automotive IGBT Module MiniSKiiP 3 with 1200V 35A and Trench 4 IGBTs

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SKIIP34NAB12T4V1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SKIIP34NAB12T4V1 Automotive IGBT Module MiniSKiiP 3 with 1200V 35A and Trench 4 IGBTs

Description

Part Number:

SKIIP34NAB12T4V1

Current::

35 A

Voltage::

1200 V

Type:

IGBT Modules

Highlight:

1200V IGBT Module

35A Automotive IGBT Module

Trench 4 IGBTs MiniSKiiP 3

SKIIP34NAB12T4V1 Automotive IGBT Modules MiniSKiiP 3 1200V 35A IGBT Module

Product Overview Of SKIIP34NAB

SKIIP34NAB is a 1200 V IGBT module supplied as a bare module, without pre-applied thermal interface material or a cover plate, making it ideal for custom assembly processes.

Technical Specifications Of SKIIP34NAB

Parameter	Value
Current	35 A
Voltage	1200 V
Topology	CIB
Product Series	MiniSKiiP
Package	MiniSKiiP II 3
Dimensions	82x59x16
Technology	IGBT
Chip Technology	IGBT 4 (Trench)

Key Features Of SKIIP34NAB

Trench 4 IGBTs
Robust and soft switching freewheeling diodes in CAL technology
Highly reliable spring contacts for electrical connections

Product Identification Of SKIIP34NAB
