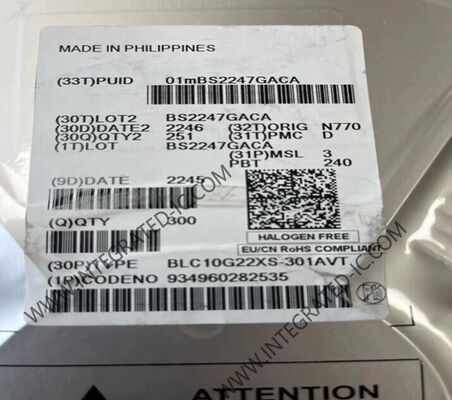

BLC10G22XS-301AVT 300W Asymmetric Doherty LDMOS Transistor for 2.11GHz ~ 2.17GHz Base Station Applications

BLC10G22XS-301AVT 300W Asymmetric Doherty LDMOS Transistor for 2.11GHz ~ 2.17GHz Base Station Applications
BLC10G22XS-301AVT 300W Asymmetric Doherty LDMOS Transistor for 2.11GHz ~ 2.17GHz Base Station Applications

Large Image :  BLC10G22XS-301AVT 300W Asymmetric Doherty LDMOS Transistor for 2.11GHz ~ 2.17GHz Base Station Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BLC10G22XS-301AVT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT1275-1
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

BLC10G22XS-301AVT 300W Asymmetric Doherty LDMOS Transistor for 2.11GHz ~ 2.17GHz Base Station Applications

Description
Part Number: BLC10G22XS-301AVT Technology: LDMOS
Frequency: 2.11GHz ~ 2.17GHz Power - Output: 350W
Current Rating (Amps): 1.4µA Voltage - Rated: 65 V
Highlight:

300W LDMOS Transistor

,

2.11GHz ~ 2.17GHz Integrated Circuit Chip

,

Asymmetric Doherty RF MOSFET Transistor

BLC10G22 Integrated Circuit Chip 300W Asymmetric Doherty Power LDMOS Transistor SOT1275-1
Product Overview Of BLC10G22

BLC10G22 is a 300W LDMOS packaged asymmetric Doherty power transistor for base station applications at frequencies from 2110 MHz to 2170 MHz.

Specifications Of BLC10G22
Product Category RF MOSFET Transistors
Technology Si
Id - Continuous Drain Current 1.4 uA
Vds - Drain-Source Breakdown Voltage 30 V
Operating Frequency 2.11 GHz to 2.17 GHz
Gain 15 dB
Output Power 300 W
Minimum Operating Temperature -40℃
Maximum Operating Temperature +125℃
Mounting Style SMD/SMT
Package / Case SOT-1275-1
Transistor Type LDMOS
Vgs - Gate-Source Voltage -6 V, +9 V
Key Features Of BLC10G22
  • Excellent ruggedness
  • High efficiency
  • Low thermal resistance providing excellent thermal stability
  • Lower output capacitance for improved performance in Doherty applications
  • Designed for low memory effects providing excellent digital pre-distortion capability
  • Internally matched for ease of use
  • Integrated ESD protection
Applications Of BLC10G22
  • RF power amplifiers for base stations and multi carrier applications in the 2110 MHz to 2170 MHz frequency range
