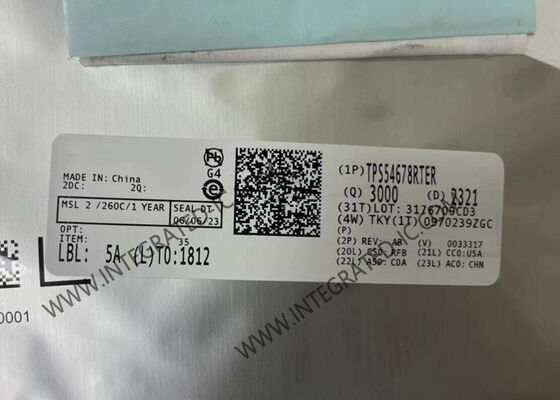

TPS54678RTER Integrated Circuit Chip SWIFT Converter with 6A Output Current 2.95V to 6V Input and Hiccup Current Limit

The TPS54678 device is a full-featured 6-V, 6-A, synchronous step-down current mode converter with two integrated MOSFETs. This integrated circuit enables small designs by incorporating MOSFETs, implementing current mode control to reduce external component count, allowing higher switching frequencies up to 2-MHz for smaller inductors, and featuring a compact 3-mm × 3-mm thermally enhanced WQFN package.

The TPS54678 provides accurate regulation for various loads with a precise ±1% voltage reference (VREF) over temperature ranges.

• Two 12-mΩ (typical) MOSFETs for high-efficiency 6-A continuous output current
• 200-kHz to 2-MHz Switching frequency
• 0.6-V ±1% Voltage reference over temperature (-40°C to 150°C)
• Synchronizes to external clock
• Start-Up with prebiased voltage
• Power good output
• Adjustable slow start and sequencing
• Cycle-by-cycle current limit and hiccup current protection
• Adjustable input voltage UVLO
• Thermally enhanced 16-pin 3-mm × 3-mm WQFN (RTE) package

• Low-voltage, high-density power systems
• Point-of-load regulation for high-performance DSPs, FPGAs and microprocessors
• Broadband, networking, and optical communications
• Communications infrastructure
• Gaming, DTV, and set-top boxes
