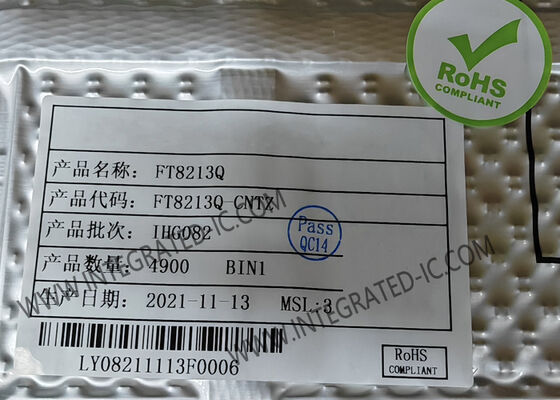

FT8213Q Integrated Circuit IC Chip Three-Phase BLDC Motor Controller With Built-In Pre-Driver and 1Ω Rdson

FT8213 is a highly integrated IC with built-in pre-driver specially designed for three-phase BLDC motor drive applications. It supports sensorless FOC and features 1Ω internal Rdson. With high integration, the chip requires few peripheral components and delivers low noise with minimal torque ripple.

• Input supply voltage: 5V ~ 18V
• Rdson: 1Ω (high-side MOS + low-side MOS)
• Drive current: 1A
• No Hall-based sensor required
• FOC control to reduce motor noise and vibration
• Motor parameters, startup control parameters and speed regulation mode stored in EFUSE
• I2C, PWM or analog voltage input interface for motor speed regulation
• Multiple control modes: constant speed, constant air flow, constant current, or open-loop
• Forward or reverse rotation selectable
• Motor speed indication or motor block indication configurable
• Sleep-mode current: 45μA
• Wake-up through SPEED pin or I2C interface
• Configurable I2C address
• Comprehensive protection features: phase loss, over-voltage lockout (OVLO), over-current protection (OCP), under-voltage lockout (UVLO), current-limiting protection (CLP), temperature sensor detect (TSD), motor lock protection (MLP)

• Refrigerator fans
• Cooling fans
• Water pumps
