QPF4551TR13 5GHz Wi-Fi 6 Front End Module with 802.11ax and SP2T Wireless Communication Module

QPF4551TR13 5GHz Wi-Fi 6 Front End Module with 802.11ax and SP2T Wireless Communication Module
QPF4551TR13 5GHz Wi-Fi 6 Front End Module with 802.11ax and SP2T Wireless Communication Module

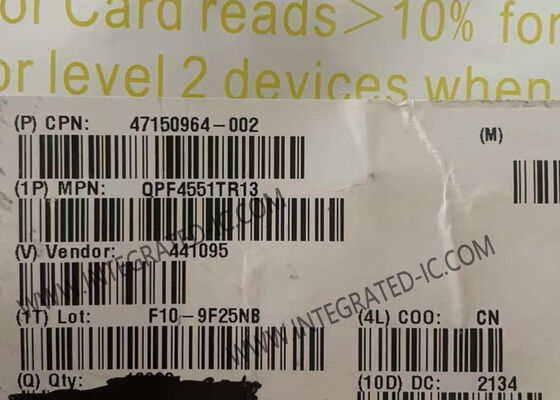

Large Image :  QPF4551TR13 5GHz Wi-Fi 6 Front End Module with 802.11ax and SP2T Wireless Communication Module

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: QPF4551TR13
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-16
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

QPF4551TR13 5GHz Wi-Fi 6 Front End Module with 802.11ax and SP2T Wireless Communication Module

Description
Features: SP2T Part Number: QPF4551TR13
RF Type: 802.11ax, Wi-Fi Frequency: 5.15GHz ~ 5.85GHz
Package: 16-QFN Type: Wi-Fi 6 Front End Module
Highlight:

5GHz Wi-Fi 6 Front End Module

,

802.11ax Wireless Communication Module

,

SP2T FEM

QPF4551 Wireless Communication Module 5GHz Wi-Fi 6 Front End Module QFN-16
Product Overview Of QPF4551

QPF4551 is an integrated front end module (FEM) designed for Wi-Fi 6 (802.11ax) systems. The compact form factor and integrated matching minimizes layout area in the application. Performance is focused on optimizing the PA for a 5 V supply voltage that conserves power consumption while maintaining the highest linear output power and leading edge throughput.

Integrated die level filtering for 2nd and 3rd harmonics as well as 2.4 GHz rejection for DBDC operation are included. The QPF4551 integrates a 5 GHz power amplifier (PA), single pole two throw switch (SP2T) and bypassable low noise amplifier (LNA) into a single device.

Specifications Of QPF4551
RF Type 802.11ax, Wi-Fi
Frequency 5.15GHz ~ 5.85GHz
Features SP2T
Package / Case 16-QFN Exposed Pad
Supplier Device Package 16-QFN (2.5x2.5)
Key Features Of QPF4551
  • POUT = +17 dBm MCS11 HE160 -43 dB Dynamic EVM
  • POUT = +19 dBm MCS11 HE80 -43 dB Dynamic EVM
  • POUT = +23.5 dBm MCS9 VHT80/160 -35 dB Dynamic EVM
  • POUT = +27 dBm MCS0 VHT20 Spectral Mask Compliance
  • Optimized for +5 V Operation
  • 32 dB Tx Gain
  • 2 dB Noise Figure
  • 13.5 dB Rx Gain & 8 dB Bypass Loss
  • 25 dB 2.4 GHz Rejection on Rx Path
Applications Of QPF4551
  • Access Points
  • Wireless Routers
  • Residential Gateways
  • Customer Premise Equipment
  • Internet of Things
