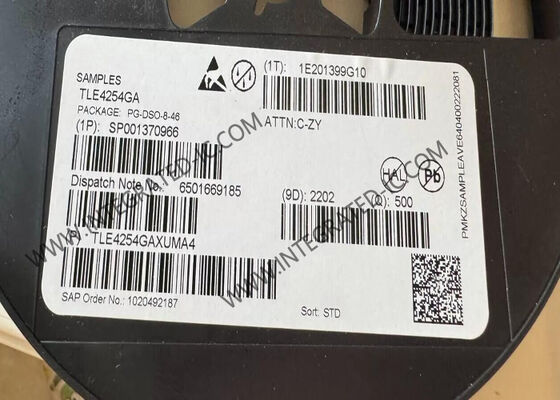

TLE4254GA Integrated Circuit Chip Low-Dropout Voltage Regulator with 70mA Output Current and 45V Input Voltage

TLE4254GA Integrated Circuit Chip Low-Dropout Voltage Regulator with 70mA Output Current and 45V Input Voltage
TLE4254GA Integrated Circuit Chip Low-Dropout Voltage Regulator with 70mA Output Current and 45V Input Voltage

Large Image :  TLE4254GA Integrated Circuit Chip Low-Dropout Voltage Regulator with 70mA Output Current and 45V Input Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TLE4254GA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DSO-8
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

TLE4254GA Integrated Circuit Chip Low-Dropout Voltage Regulator with 70mA Output Current and 45V Input Voltage

Description
Part Number: TLE4254GA Number Of Regulators: 1
Voltage - Input (Max): 45V Current - Output: 70mA
Current - Quiescent (Iq): 80 µA Current - Supply (Max): 15 MA
Highlight:

Low-Dropout Integrated Circuit Chip

,

70mA Output Current Voltage Regulator

,

45V Input Voltage TLE4254GA

TLE4254GA Integrated Circuit Chip Monolithic Integrated Low-Dropout Voltage Tracking Regulator
Product Description Of TLE4254

The TLE4254 is a monolithic integrated low-dropout voltage tracking regulator with high accuracy in small PG-DSO-8 packages.

The IC supplies off-board systems in automotive applications with protection against reverse polarity and short circuit. It supports supply voltages up to 40 V. The output voltage follows a reference voltage applied at the adjust input with high accuracy (min. 2.0 V). It can drive loads up to 70 mA and tracks a 5 V output from a main voltage regulator as a reference.

Specification Of TLE4254
Parameter Value
Output Voltage: Adjustable
Output Current: 70 mA
Number of Outputs: 1 Output
Polarity: Positive
Quiescent Current: 1 uA
PSRR / Ripple Rejection - Typ: 60 dB
Output Type: Adjustable
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +150°C
Dropout Voltage: 200 mV
Dropout Voltage - Max: 400 mV
Line Regulation: 1 mV
Load Regulation: 1 mV
Unit Weight: 83 mg
Features Of TLE4254
  • 70 mA output current capability
  • Very tight output tracking tolerance
  • Output voltage adjustable down to 2.0 V
  • Operation with 1µF ceramic o/p capacitor
  • Flexibility of output voltage
  • Status output to indicate short circuits
  • Very low dropout voltage
  • Combined reference / enable input
  • Very low current consumption in OFF mode
  • Wide input V R -20V≤VI≤ +45V
  • Temperature R: -40°C≤Tj≤150°C
  • Output protected against short circuit
Benefits Of TLE4254
  • Efficient and accurate V replication
  • Robust tracking supply
Applications Of TLE4254
  • Domain controller for ADAS & autonomous driving
  • EV traction inverter
  • Automotive Power Distribution Unit (PDU)
