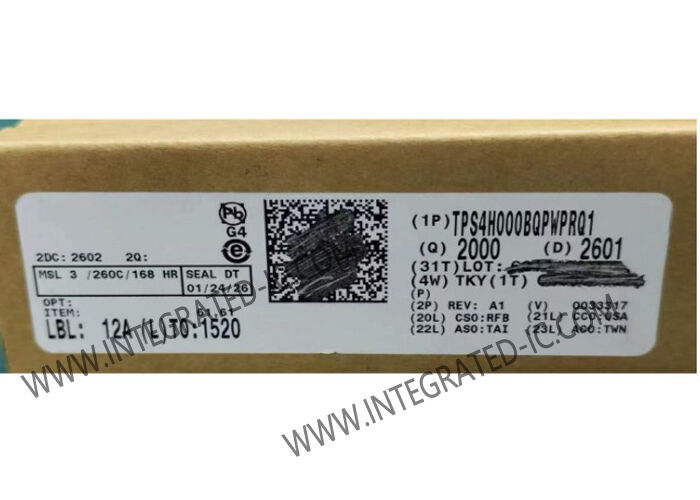

TPS4H000BQPWPRQ1 40V 1Ω 4-Channel Automotive Smart High-Side Switch Integrated Circuit Chip

TPS4H000BQPWPRQ1 40V 1Ω 4-Channel Automotive Smart High-Side Switch Integrated Circuit Chip
TPS4H000BQPWPRQ1 40V 1Ω 4-Channel Automotive Smart High-Side Switch Integrated Circuit Chip

Large Image :  TPS4H000BQPWPRQ1 40V 1Ω 4-Channel Automotive Smart High-Side Switch Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS4H000BQPWPRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-20
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000 Pieces per Day
Contact Now

TPS4H000BQPWPRQ1 40V 1Ω 4-Channel Automotive Smart High-Side Switch Integrated Circuit Chip

Description
Part Number: TPS4H000BQPWPRQ1 Number Of Outputs: 4
Ratio - Input:Output: 1:1 Voltage - Load: 3.4V ~ 40V
Current - Output (Max): 750mA Rds On (Typ): 1Ohm
Highlight:

40V Smart High-Side Switch

,

1Ω Integrated Circuit Chip

,

4-Channel Automotive IC

TPS4H000BQPWPRQ1 Integrated Circuit Chip 40V 1Ω 4-Channel Automotive Smart High-Side Switch With Adjustable Current Limit
Product Overview Of TPS4H000

The TPS4H000 is a fully protected quad-channel smart high-side switch with integrated 1000‑mΩ NMOS power FETs. This automotive-grade IC features comprehensive diagnostics and high-accuracy current-sense capabilities for intelligent load control.

An external adjustable current limit enhances system reliability by controlling inrush or overload currents.

Specifications Of TPS4H000
Type High Side
Number of Outputs 4 Output
Output Current 750 mA
Current Limit 1.6 A
On Resistance - Max 2 Ohms
On Time - Max 60 μs
Off Time - Max 60 μs
Operating Supply Voltage 3.4 V to 40 V
Operating Temperature Range -40°C to +125°C
Unit Weight 128.500 mg
Key Features Of TPS4H000
  • Qualified for Automotive Applications (AEC-Q100)
  • Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
  • Device HBM ESD Classification Level H2
  • Device CDM ESD Classification Level C4B
  • Quad-Channel 1000-mΩ Smart High-Side Switch With Full Diagnostics
  • Version A: Open-Drain Status Output
  • Version B: Current-Sense Analog Output
  • Wide Operating Voltage 3.4 to 40 V
  • Ultralow Standby Current, <500 nA
  • High-Accuracy Current Sense: ±15% Under >5-mA Load
  • Adjustable Current Limit With External Resistor ±20% Under >100-mA Load
  • Comprehensive Protection Features
  • Advanced Diagnostic Capabilities
  • 20-Pin Thermally-Enhanced PWP Package
Applications Of TPS4H000
  • Quad-Channel LED Drivers
  • Quad-Channel High-Side Switches for Sub Modules
  • Quad-Channel High-Side Relay Drivers
Product Identification

TPS4H000BQPWPRQ1, TPS4H000BQPWPRQ, TPS4H000BQPWPR, TPS4H000BQPWP, TPS4H000BQPW, TPS4H000BQP, TPS4H000BQ, TPS4H000B, TPS4H000
