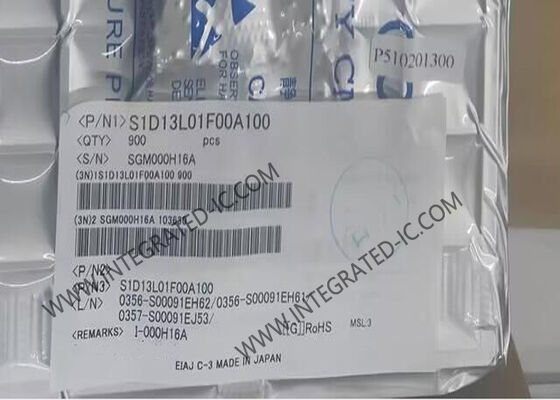

S1D13L01F00A100 Integrated Circuit Chip LCD Controller with 384KB WQVGA Display Buffer in QFP-128 Package

S1D13L01F00A100 Integrated Circuit Chip LCD Controller with 384KB WQVGA Display Buffer in QFP-128 Package
S1D13L01F00A100 Integrated Circuit Chip LCD Controller with 384KB WQVGA Display Buffer in QFP-128 Package

Large Image :  S1D13L01F00A100 Integrated Circuit Chip LCD Controller with 384KB WQVGA Display Buffer in QFP-128 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S1D13L01F00A100
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFP-128
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

S1D13L01F00A100 Integrated Circuit Chip LCD Controller with 384KB WQVGA Display Buffer in QFP-128 Package

Description
Part Number: S1D13L01F00A100 Operating Frequency: 66 MHz
Control Interface: SPI Voltage - Supply: 1.5V ~ 3.3V
Applications: Video Display Operating Temperature: -40°C ~ 85°C
Highlight:

384KB Integrated Circuit Chip

,

WQVGA LCD Controller

,

QFP-128 Video Controller IC

S1D13L01F00A100 Integrated Circuit Chip 384KB WQVGA Simple LCD Controller QFP-128 Video Controller IC
Product Overview

S1D13L01 is a simple, multi-purpose graphics LCD controller with 384 KB embedded SRAM display buffer which supports TFT panels. The S1D13L01 supports most popular CPU interfaces in both 8/16-bit and direct/indirect variations. The embedded display buffer allows WQVGA up to 480x272 at 24bpp or 800x480 8bpp for single layer display, or 480x272 at 16bpp (Main layer) and 480x272 at 8bpp (PIP layer) for two layer display.

Specifications
Product Category Display Drivers & Controllers
Product Controllers
Display Type LCD
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +85 ℃
Mounting Style SMD/SMT
Package / Case QFP-128
Supply Voltage - Max 1.5 V, 1.8 V, 3.3 V
Supply Voltage - Min 1.5 V, 1.8 V, 3.3 V
Operating Frequency 66 MHz
Key Features
  • Embedded 384 KB display buffer
  • Direct and indirect CPU interfaces
  • 8/16-bit data bus width
  • SPI CPU interface
  • Support for RGB interface TFT panels
  • Programmable resolutions up to 800x480@8bpp
  • Programmable color depth up to 24 bpp
  • Supports Main and PIP windows
  • SwivelViewTM 90°, 180°, 270° rotation
  • General purpose input/output pins
  • LUT 256x24bitx 3pcs for both main and PIP layer
  • Alpha blending, transparency, flashing
  • Software initiated power save mode
  • Clocks can be selected from two embedded PLLs or digital clock inputs
  • HIOVDD/PIOVDD: 3.3 or 1.8V CORE/PLLVDD: 1.5V
  • Temperature range: -40° ~ 85°
  • Package: QFP15 128-pin, 0.4mm pin pitch
