ASM1352R Integrated Circuit Chip USB3.1 To Dual SATA Bridge Controller 10G SATA Device QFN-64

ASM1352R Integrated Circuit Chip USB3.1 To Dual SATA Bridge Controller 10G SATA Device QFN-64

Product Description

ASM1352 is single chip solution to bridge the USB 3.2 Gen2x1 to dual SATA interface. It is highly integrated with ASMedia SuperSpeedPlus, SuperSpeed, and High-Speed and SATA self-designed PHYs.
ASM1352 supports one USB 3.2 Gen2x1 ports and two SATA device ports, enabling USB PHY up to 10Gbps in compliance with USB 3.1 specifications and enabling Serial ATA PHYs up to 6Gbps high speed interface, following Serial ATA Revision 3.2 Specification.
ASM1352 integrates proprietary HydraTek technology, supporting RAID0 (Strip), RAID1 (Mirror), JBOD and Span (BIG) with low power and high efficiency RAID operation, easily configurable modes through GUI, completely free of resource loading on the system CPU. ASM1352 is useful for USB to SATA port expansion and performance boost, not only for internal design but also for external storage application.

General Features
Integrated 8-bit micro-processor with embedded program RAM and ROM
Support SPI NVRAM for Vendor Specific Application of USB Device Controller
Support I2C interface master mode
Support multiple GPIOs for LEDs and Storage Power Control
Firmware downloadable by vendor specific commands via SATA host port
FAN control support
Drive plug-in detection capable
Integrated Core power switching regulator
Support 3.3V IO power supply and 1.2V Core power supply
Support 25MHz with external crystal mode
8mmx8mm 64-pin QFN package
Green Package with RoHs Compliance

USB Features
Support USB SuperSpeedPlus, USB SuperSpeed, High-Speed, and Full-Speed Operation.
Support Mass Storage Class, Bulk-Only Transport Specification Revision 1.3
Support Universal Attached SCSI Protocol Specification Revision 1.0
Compliant with USB3.1 Specification Revision 1.0
Compliant with USB Specification Revision 2.0

Serial ATA Features
Serial ATA bus up to 6Gbps Signal bandwidth
Serial ATA PHY 1i/1m/1u/2i/2m/2u/3i/3u compliance
Support SATA NCQ command
Support over 2TB drives
Staggered spin-up
SATA Partial/Slumber support
Power down capable for each storage drive
SATA in-band commands support
Pass through support for vendor specific commands
Compliant with Serial ATA Specification Revision 3.2
Support Spread Spectrum Control of USB3.0 and SATA interface to improve the EMI performance.
Support ATA/ATAPI Packet Command Set
Support ATA/ATAPI LBA48 addressing mode
28-bit LBA SATA devices are not supported due to OS limitations

Hydratek Features
Support hardware RAID 0/1/JBOD/SPAN (BIG) mode
RAID mode switch by hardware strapping
Failed or degraded drives detection and report
Automatic background rebuilding support
Auto recovery from checkpoint location
RAID error log
SMART drive monitoring

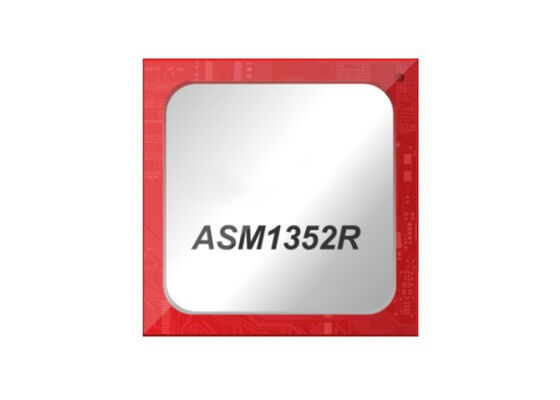

Product Photo

Other Electronic Components In Stock

Tag: ASM1352R, ASM1352
