ASM2812 Low Power PCIe Gen3 Packet Switching Chip with 12 Lane in LFBGA-492 Package

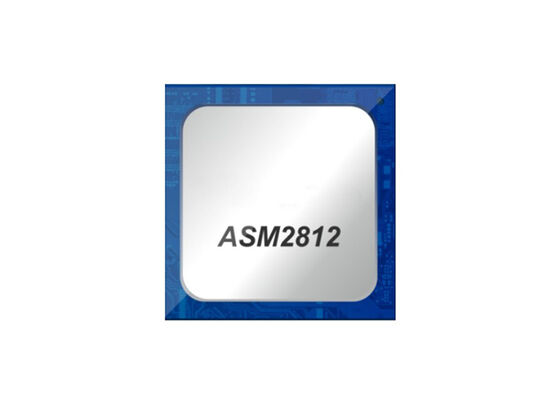

Large Image : ASM2812 Low Power PCIe Gen3 Packet Switching Chip with 12 Lane in LFBGA-492 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ASM2812

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	LFBGA-492
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ASM2812 Low Power PCIe Gen3 Packet Switching Chip with 12 Lane in LFBGA-492 Package

Description

Part Number:

ASM2812

Package:

LFBGA-492

Payload Size:

512Byte

Transfer Rate:

2.5Gb(250MB/s), 5Gb(500MB/s) Or 8Gb(1GB/s)

Highlight:

Low Power Integrated Circuit Chip

LFBGA-492 Package PCIe Gen3 Packet Switching Chip

12 Lane ASM2812

ASM2812 Integrated Circuit Chip Low Power PCIe Gen3 Packet Switching Chip In LFBGA-492 Package

Product Overview Of ASM2812

ASM2812 is a low latency, low cost and low power 12 lane, maximum 6 downstream ports packet switch. With upstream PCIe Gen3x4 bandwidth, ASM2812 enables users to build various high speed IO systems, including server, system storage or communication platforms.

Key Features Of ASM2812

Upstream PCIe interface with 1-, 2-, or 4-lane PCIe® connecting with root port
Automatic detection of lane configuration on boot-up
Supporting transfer rates of 2.5Gb(250MB/s), 5Gb(500MB/s) or 8Gb(1GB/s) per lane
Downstream PCIe interface with 8 lane PCIe® 3.1 interface supporting up to 6 PCIe® ports
Support for L0s/L1/L23/L3 power saving states
Support for L1 substate deep power saving mode
Wake up function support in S3/S4 states
Individual port disable control
Support for LTR and AER
SRIS support on both upstream and downstream ports
Max Payload Size = 512Byte
Hot-plug and surprise remove support
