ASM2806 Integrated Circuit Chip PCIe Gen3 Packet Switching Chip with 6 Lane and 4 Port

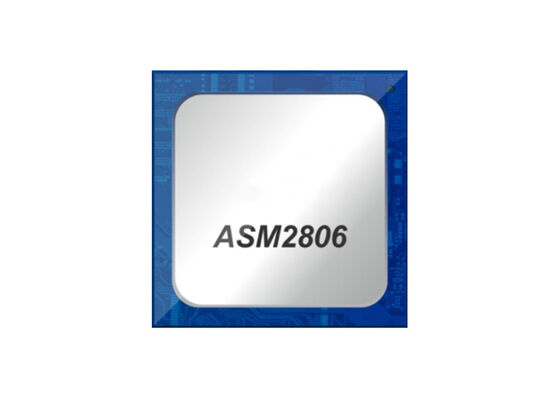

Large Image : ASM2806 Integrated Circuit Chip PCIe Gen3 Packet Switching Chip with 6 Lane and 4 Port

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ASM2806

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-88
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ASM2806 Integrated Circuit Chip PCIe Gen3 Packet Switching Chip with 6 Lane and 4 Port

Description

Part Number:

ASM2806

Package:

QFN-88

Payload Size:

512Byte

Transfer Rate:

2.5Gb(250MB/s), 5Gb(500MB/s) Or 8Gb(1GB/s) Per Lane

Highlight:

6 Lane Integrated Circuit Chip

4 Port PCIe Packet Switching Chip

PCIe Gen3 ASM2806

ASM2806 Integrated Circuit Chip 6 Lane 4 Port PCIe Gen3 Packet Switching Chip QFN-88

Product Overview Of ASM2806

ASM2806 is a low latency, low cost, and low power 6-lane packet switch supporting up to 4 downstream ports. With upstream PCIe Gen3x2 bandwidth, the ASM2806 enables users to build various high-speed IO systems, including servers, system storage, and communication platforms.

Key Features Of ASM2806

Upstream PCIe Interface

1- or 2-lane PCIe® connection with root port
Automatic detection of lane configuration on boot-up
Supports transfer rates of 2.5Gb (250MB/s), 5Gb (500MB/s), or 8Gb (1GB/s) per lane

Downstream PCIe Interface

4-lane PCIe® 3.1 interface supporting up to 4 PCIe® ports
Supports L0s/L1/L23/L3 power saving states
Supports L1 substate deep power saving mode
Supports wake-up function in S3/S4
Supports port disable by individual control
Supports LTR and AER
Supports SRIS on both upstream and downstream ports
Max Payload Size = 512Byte
Supports hot-plug and surprise removal
