ASM2806A Integrated Circuit Chip Low Latency 6 Lane 4 Port PCIe Gen3 Packet Switching Chip

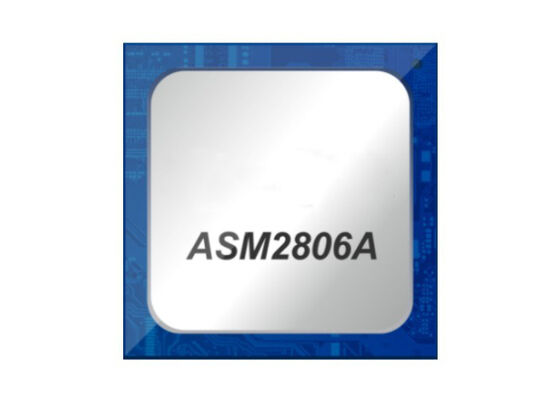

Large Image : ASM2806A Integrated Circuit Chip Low Latency 6 Lane 4 Port PCIe Gen3 Packet Switching Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ASM2806A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-88
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ASM2806A Integrated Circuit Chip Low Latency 6 Lane 4 Port PCIe Gen3 Packet Switching Chip

Description

Part Number:

ASM2806A

Package:

QFN-88

Payload Size:

512Byte

Transfer Rate:

2.5Gb(250MB/s), 5Gb(500MB/s) Or 8Gb(1GB/s) Per Lane

Highlight:

Low Latency Integrated Circuit Chip

6 Lane PCIe Packet Switching Chip

4 Port ASM2806A Chip

ASM2806A Integrated Circuit Chip Low Latency 6 Lane 4 Port PCIe Gen3 Packet Switching Chip

Product Overview Of ASM2806A

The ASM2806A is a low latency, cost-effective, and low power 6-lane PCIe Gen3 packet switch with a maximum of 2 downstream ports. With upstream PCIe Gen3x2 bandwidth, the ASM2806A enables users to build various high-speed IO systems, including servers, system storage, and communication platforms.

Key Features Of ASM2806A

Upstream PCIe Interface: 1- or 2-lane PCIe® connection with root port
Automatic detection of lane configuration on boot-up
Support for transfer rates of 2.5Gb (250MB/s), 5Gb (500MB/s), or 8Gb (1GB/s) per lane
Downstream PCIe Interface: 4-lane PCIe® 3.1 interface supporting up to 4 PCIe® ports
Support for L0s/L1/L23/L3 power saving states
Support for L1 substate deep power saving mode
Wake-up function support in S3/S4 states
LTR (Latency Tolerance Reporting) support
AER (Advanced Error Reporting) support
SRIS (Separate Reference Independent Spread) support on both upstream and downstream ports
Max Payload Size = 512Byte
Hot-plug and surprise remove support
