ASM1092 Integrated Circuit Chip SATA Port Multiplier Controller with 6Gbps High Speed and Serial ATA Revision 3.0 Compliance in QFN-48 Package

ASM1092 Integrated Circuit Chip SATA Port Multiplier Controller with 6Gbps High Speed and Serial ATA Revision 3.0 Compliance in QFN-48 Package
ASM1092 Integrated Circuit Chip SATA Port Multiplier Controller with 6Gbps High Speed and Serial ATA Revision 3.0 Compliance in QFN-48 Package

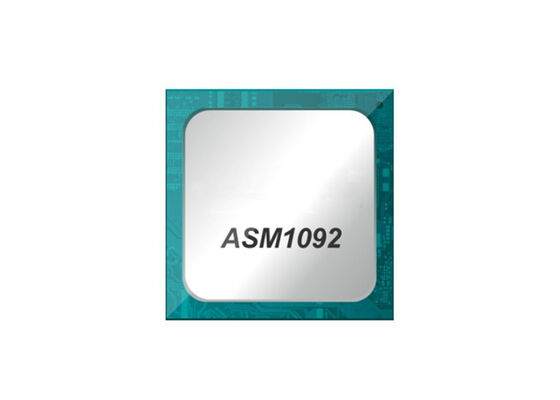

Large Image :  ASM1092 Integrated Circuit Chip SATA Port Multiplier Controller with 6Gbps High Speed and Serial ATA Revision 3.0 Compliance in QFN-48 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ASM1092
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-48
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ASM1092 Integrated Circuit Chip SATA Port Multiplier Controller with 6Gbps High Speed and Serial ATA Revision 3.0 Compliance in QFN-48 Package

Description
Part Number: ASM1092 Package: QFN-48
IO Power Supply: 3.3V Core Power Supply: 1.2V
Highlight:

6Gbps High Speed Integrated Circuit Chip

,

Serial ATA Revision 3.0 Compliance SATA Port Multiplier Controller

,

QFN-48 Package ASM1092

ASM1092 Integrated Circuit Chip High Speed SATA Port 6Gbps Multiplier Controller
Product Overview Of ASM1092

The ASM1092 is a Serial ATA port multiplier controller that supports one host port and two device drives. It enables Serial ATA PHY with up to 6Gbps high-speed interface, following Serial ATA Revision 3.0 Specification. This controller provides complete CPU offloading and is designed for SATA port expansion in both internal systems and external storage applications.

Key Features Of ASM1092
General Features
  • Firmware downloadable by vendor specific commands via SATA host port
  • FAN control support
  • Device plug-in detection capable
  • Selectable clock architecture with crystal mode or clock mode
  • 30MHz differential crystal or 30MHz single-end clock input
  • Integrated Core power switching regulator
  • Support 3.3V IO power supply and 1.2V Core power supply
  • Support SPI interface for external SPI ROM
  • Support Secondary SPI interface for specific customized application
  • Support I2C interface with both master mode and slave mode
  • Support multiple GPIOs for LEDs and storage Power Control
Industry Specification Compliance
  • Serial ATA Revision 3.0 Compliance
  • Serial PHY Electrical Specification Revision 1.1
  • SATA II: Port Multiplier Specification Revision 1.0
  • 7mmX7mm 48-pin QFN package
  • Green Package with RoHS Compliance
Serial ATA Features
  • Support SATA Hot Plug for both host port and device ports
  • Serial ATA PHY 1i/1m/1u/2i/2m/2u/3i/3u compliance
  • Support SATA NCQ command
  • Support over 2TB drives
  • Programmable Spread Spectrum Control to enhance EMI performance
  • Support staggered spin-up
  • Support SATA Partial/Slumber
  • Power down capable and independent for each storage drive
  • SATA in-band commands support
  • Pass through support for vendor specific commands
Related Electronic Components In Stock
Part Number Package
339S01015 QFN
TMC5072-LA 48-QFN
CS46L41-CWZR WLCSP
PI2DBS16212AZREX 24-TQFN
STM32L4A6VGT6 100-LQFP
ISL9238CIRTZ 32-TQFN
ISL9238CHRTZ 32-TQFN
RAA489800ARGNP 32-TQFN
TPS62135RGXR 11-VQFN
ISL9238 32-TQFN
RAA489800 32-TQFN
TPS62135 11-VQFN
MT62F1G64D8WT-031 496-FBGA
TMC5072 48-QFN
CS46L41 WLCSP
PI2DBS16212 24-TQFN
AGFB014R24D1I3V 2340-BGA
AGFB008R16A2I2VB 1546-BGA
AGFD023R31C2E3E 3184-BGA
AGFB012R24C2I3E 2340-BGA
AGFB014R24C2I2V 2340-BGA
AGFD023R25A3E3E 2581-FBGA
AGID019R31B1I1VB 3184-BGA
AGFB019R31C2E2VB 3184-BGA
AGFD023R24C2E1VB 3184-BGA
AGFB019R24C2I1V 2340-BGA
AGFB023R24C2E1V 2340-BFBGA
AGIB027R29B1E2V 2957-BGA
AGIB027R31A2E2V 3184-BGA
AGFB019R24C3I3E 2340-BFBGA
Frequently Asked Questions
Q: Are your products original?
A: Yes, all products are original. New original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample? Is the sample free?
A: Yes, we support sample orders and small orders. Sample cost varies according to your order or project requirements.
Q: How to ship my order? Is it safe?
A: We use express carriers such as DHL, FedEx, UPS, TNT, and EMS. We can also use your suggested forwarder. Products are professionally packaged to ensure safety, and we are responsible for any product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days. For items not in stock, we will confirm the lead time based on your order quantity.
