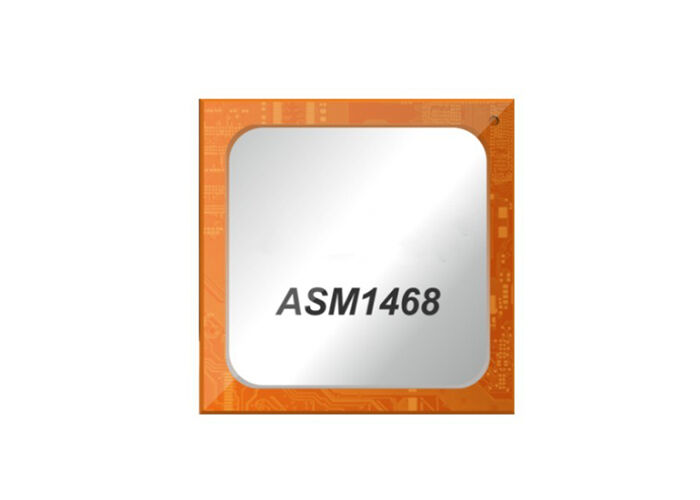

ASM1468 High Performance Dual Lanes 8Gbps PCIe Redriver Integrated Circuit Chip

The ASM1468 is a dual lanes/4 differential channels linear redriver supporting up to 8Gbps signaling rate, designed for PCI Express PCB trace extension applications.

This four-differential channel linear redriver features programmable receiver equalization and DC Gain level configuration via functional pins. Each channel can be independently configured to optimize signal performance over variable PCB trace and cable mediums with minimal inter-symbol interference.

Manufactured using CMOS process technology, the ASM1468 delivers low power consumption and high performance in a dual lanes redriver configuration. It operates with a 3.3V single power supply and utilizes a 3.5x9 QFN42 Green package.
