ASM1156 Integrated Circuit Chip USB to SATA Bridge IC with 5Gbps USB 3.2 Gen-I 6Gbps SATA Interface and HydraTek Technology

ASM1156 Integrated Circuit Chip USB to SATA Bridge IC with 5Gbps USB 3.2 Gen-I 6Gbps SATA Interface and HydraTek Technology
ASM1156 Integrated Circuit Chip USB to SATA Bridge IC with 5Gbps USB 3.2 Gen-I 6Gbps SATA Interface and HydraTek Technology

Large Image :  ASM1156 Integrated Circuit Chip USB to SATA Bridge IC with 5Gbps USB 3.2 Gen-I 6Gbps SATA Interface and HydraTek Technology

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ASM1156
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-64
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

ASM1156 Integrated Circuit Chip USB to SATA Bridge IC with 5Gbps USB 3.2 Gen-I 6Gbps SATA Interface and HydraTek Technology

Description
Highlight:

5Gbps USB 3.2 Gen-I ASM1156 Integrated Circuit Chip

,

6Gbps SATA Interface USB to SATA Bridge IC

,

HydraTek Technology SATA Port Multiplier IC

ASM1156 Integrated Circuit Chip 5G SATA Device 6Gbps USB 3.2 Gen-I To SATA RAID/Port Multiplier
ASM1156 Integrated Circuit Chip 5G SATA Device 6Gbps USB 3.2 Gen-I To SATA RAID/Port Multiplier
Product Description Of ASM1156
ASM1156 is a single chip solution to bridge USB 3.2 Gen-I to dual SATA interface. It is highly integrated with SuperSpeedPlus, SuperSpeed, and High-Speed and SATA self-designed PHYs.
ASM1156 supports one USB 3.2 Gen-I port and two SATA device ports, enabling USB PHY up to 5 Gbps in compliance with USB 3.2 specifications and enabling Serial ATA PHYs up to 6Gbps high speed interface, following Serial ATA Revision 3.2 Specification.
ASM1156 integrates proprietary HydraTek technology, supporting JBOD and Clone with low power and high efficiency operation. ASM1156 is useful for USB to SATA port expansion and performance boost, not only for internal design but also for external storage application.
General Features Of ASM1156
  • Integrated 8-bit micro-processor with embedded program RAM and ROM
  • Support SPI NVRAM for Vendor Specific Application of USB Device Controller
  • Support I2C interface with both master mode and slave mode
  • Support multiple GPIOs for LEDs and Storage Power Control
  • Firmware downloadable by vendor specific commands via SATA host port
  • FAN control support
  • Drive plug-in detection capable
  • Integrated Core power switching regulator
  • Support 3.3V IO power supply and 1.2V Core power supply
  • Support 25MHz with external crystal mode
  • 8mmx8mm 64-pin QFN package
  • Green Package with RoHS Compliance
USB Features Of ASM1156
  • Support USB SuperSpeedPlus, USB SuperSpeed, High-Speed, and Full-Speed Operation
  • Support Mass Storage Class, Bulk-Only Transport Specification Revision 1.3
  • Support Universal Attached SCSI Protocol Specification Revision 1.0
  • Compliant with USB3.1 Specification Revision 1.0
  • Compliant with USB Specification Revision 2.0
Serial ATA Features Of ASM1156
  • Serial ATA bus up to 6Gbps Signal bandwidth
  • Serial ATA PHY 1i/1m/1u/2i/2m/2u/3i/3u compliance
  • Support SATA NCQ command
  • Support over 2TB drives
  • Staggered spin-up
  • SATA Partial/Slumber support
  • Power down capable for each storage drive
  • SATA in-band commands support
  • Pass through support for vendor specific commands
  • Compliant with Serial ATA Specification Revision 3.2
  • Support Spread Spectrum Control of USB3.0 and SATA interface to improve EMI performance
  • Support ATA/ATAPI Packet Command Set
  • Support ATA/ATAPI LBA48 addressing mode
  • 28-bit LBA SATA devices are not supported due to OS limitations
HydraTek Features Of ASM1156
  • Support hardware JBOD mode
  • SMART drive monitoring

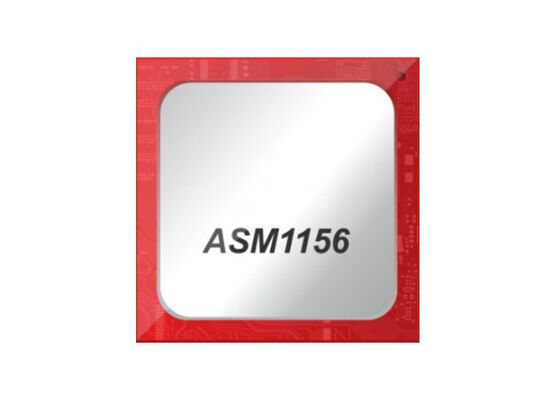

Product Photo Of ASM1156
