ASM2074 Integrated Circuit Chip USB Controller with 10Gbps USB 3.2 Gen2x1 Hub in QFN-88L Package

ASM2074 Integrated Circuit Chip USB Controller with 10Gbps USB 3.2 Gen2x1 Hub in QFN-88L Package
ASM2074 Integrated Circuit Chip USB Controller with 10Gbps USB 3.2 Gen2x1 Hub in QFN-88L Package

Large Image :  ASM2074 Integrated Circuit Chip USB Controller with 10Gbps USB 3.2 Gen2x1 Hub in QFN-88L Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ASM2074
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-88L
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

ASM2074 Integrated Circuit Chip USB Controller with 10Gbps USB 3.2 Gen2x1 Hub in QFN-88L Package

Description
Highlight:

10Gbps USB Controller

,

USB 3.2 Gen2x1 Integrated Circuit Chip

,

QFN-88L USB Hub Controller

ASM2074 Integrated Circuit Chip 10G USB 3.2 Hub Controller QFN-88L USB Controller
ASM2074 Integrated Circuit Chip 10G USB 3.2 Hub Controller QFN-88L USB Controller
ASM2074 is a USB 3.2 compliant hub, which integrates seamlessly with legacy and innovative self-designed PHY technology. The ASM2074 supports 4 downstream ports, and offers a low-power, configurable, and versatile solution for USB applications. The ASM2074 is fully compliant with USB 3.2 Specification Revision 1.0 and USB Battery Charging Specification Revision 1.2.
USB 3.2 Gen2x1 HUB Features Of ASM2074
  • Compliant with USB 3.2 specification Revision 1.0
  • Upstream Port supports USB 3.2 Gen2x1 10Gbps, High-Speed and Full-Speed Connections
  • 4 Downstream Ports support USB3.2 Gen2x1 10Gbps, High-Speed, Full-Speed and Low-Speed Connections
  • Implements USB 3.0 power management function
  • SuperSpeed Link Power Management support
  • USB 2.0 Link Power Management support
  • USB Attached SCSI Protocol Revision 1.0 Compliance
  • Multiple Transaction Translator support
  • Port Power Switching and Over-Current Protection per port control
  • Individual or Gang mode selectable via strapping
  • Can be defined as removable or permanently attached
Battery Charging Features Of ASM2074
  • Supports battery charging of most battery powered devices on all ports
  • USB-IF Battery Charging rev. 1.2 support (DCP, CDP & SDP)
  • Supports portable devices such as iPad and cellphones
  • Supports automatic Battery Charger Detection
  • Supports charging while the system enters the active or suspended state
General Features Of ASM2074
  • Integrated 8-bit microprocessor
  • SPI flash support for customized firmware
  • External I2C EEPROM for customized configuration
  • Firmware & configuration capable of being uploaded via upstream ports
  • Integrated 5V to 3.3V LDO
  • Supports self-powered and bus-powered modes
  • Automatic power type detection and dynamic power type switch
  • Supports 25 MHz X'tal as clock source
  • Multiple GPIOs for LED applications
  • Two Power Supply domains
  • IO power supply with 3.3V+/-0.3V and 2.5V +/-0.2V
  • Core power supply 1.05V+/-0.05V
  • 10x10 mm2 88-pin QFN package
  • Green Package with RoHS compliance

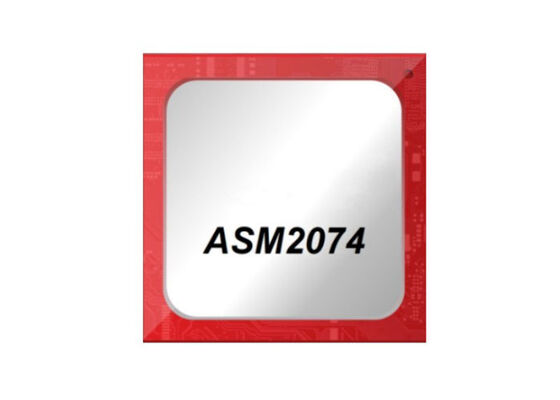

Product Photo Of ASM2074
ASM2074 Integrated Circuit Chip 10G USB 3.2 Hub Controller
