ASM3074 Integrated Circuit Chip 20G USB 3.2 Gen2x2 Hub Controller QFN-88 USB Controller
ASM3074 Integrated Circuit Chip 20G USB 3.2 Gen2x2 Hub Controller QFN-88 USB Controller
Product Description Of ASM3074
ASM3074 is a USB 3.2 compliant hub with legacy, innovative, and self-designed PHY technology perfectly integrated into it. The ASM3074 supports 4 downstream ports, and offers a low-power and cost-effective solution for a variety of USB applications. The ASM3074 is fully compliant with USB 3.2 Specification Revision 1.0 and USB Battery Charging Specification Revision 1.2.
General Features Of ASM3074
- Integrated 8-bit microprocessor
- SPI flash support for customized firmware
- External I2C EEPROM for customized configuration
- Firmware & configuration capable of being uploaded via the upstream port
- Integrated 5V to 3.3V LDO
- Supports self-powered and bus-powered modes
- Automatic power type detection and dynamic power type switch
- Supports 25 MHz X'tal as clock source
- Multiple GPIOs for LED applications
- Two Power Supply domains
- IO power supply with 3.3V+/-0.3V and 2.5V +/-0.2V
- Core power supply 1.05V+/-0.05V
- Package Type: 10x10 mm² 88-pin QFN package
- Green Package with RoHS compliance
USB 3.2 Gen2x2 HUB Features Of ASM3074
- Compliant with USB 3.2 specification Revision 1.0
- The upstream port supports USB 3.2 Gen2x2 20Gbps with CC logic implemented, High-Speed and Full-Speed Connections
- 4 downstream ports support USB3.2 Gen2x1 10Gbps, High-Speed, Full-Speed and Low-Speed Connections
- Implements USB 3.0 power management function
- SuperSpeed Link Power Management support
- USB 2.0 Link Power Management support
- USB Attached SCSI Protocol Revision 1.0 Compliance
- Multiple Transaction Translator support
- Port Power Switching and Over-Current Protection per port control
- Individual or Gang mode selectable via strapping
- Can be defined as removable or permanently attached
Battery Charging Features Of ASM3074
- Charging Downstream Ports support USB-C 5V/3A with an external CC logic chip
- Supports battery charging of most battery powered devices on all ports
- USB-IF Battery Charging rev. 1.2 support (DCP, CDP & SDP)
- Supports portable devices such as iPad and cellphones
- Supports automatic Battery Charger Detection
- Supports charging while the system enters the active or suspended state

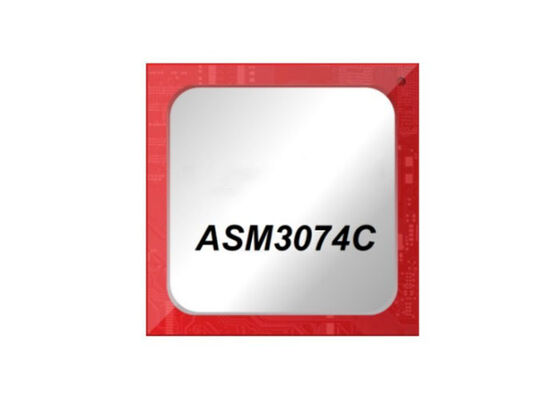

Product Photo Of ASM3074
